• Grain size<0.6um, 12% cobalt for reinforced core strength
• Advanced Balzers Ap（AlCrN) Coating
• Unequal Angle (88° / 92°)
• Double core diameter
• Available in 2 flutes and 4 flutes
• Grain size<0.6um, 12% cobalt for reinforced core strength
• Advanced Balzers Ap（AlCrN) Coating
• Unequal Angle (88° / 92°)
• Double core diameter
• Available in 2 flutes and 4 flutes

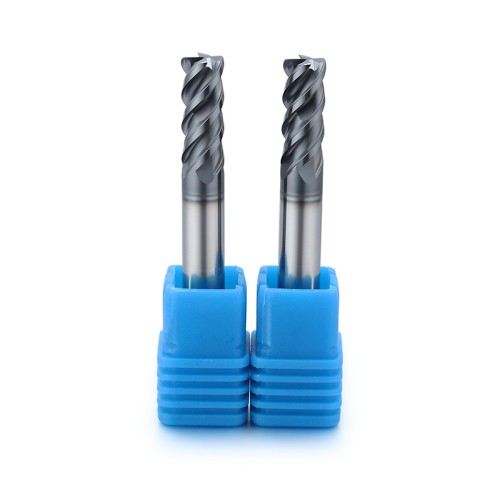

The TEX corner radius end mill is specially developed for stainless steel machining, especially for dynamic milling, semi-finishing, and finishing applications. The corner radius geometry helps improve edge strength, reduce chipping, and provide more stable cutting performance than a square end mill.
If you are comparing cutter geometries for stainless steel machining, you can also read our guide to stainless steel end mill types and how to choose the right one

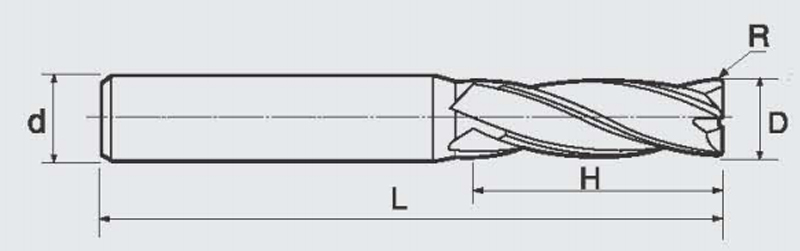

Corner Radius Standard Size for Stainless Steel Machining
| Specification | Flute dia | R | Flute L | Shank dia | Overall L |
| D1.0XR0.2X3XD4X50 | 1.0 | 0.2 | 3 | 4 | 50 |
| D1.5XR0.2X4XD4X50 | 1.5 | 0.2 | 4 | 4 | 50 |
| D1.5XR0.5X4XD4X50 | 1.5 | 0.5 | 4 | 4 | 50 |
| D2.0XR0.2X6XD3X50 | 2.0 | 0.2 | 6 | 4 | 50 |
| D2.0XR0.2X6XD4X50 | 2.0 | 0.2 | 6 | 4 | 50 |
| D2.0XR0.3X6XD4X50 | 2.0 | 0.3 | 6 | 4 | 50 |
| D2.0XR0.5X6XD4X50 | 2.0 | 0.5 | 6 | 4 | 50 |
| D2.5XR0.2X7XD4X50 | 2.5 | 0.2 | 7 | 4 | 50 |
| D2.5XR0.5X7XD4X50 | 2.5 | 0.5 | 7 | 4 | 50 |
| D3.0XR0.2X8XD4X50 | 3.0 | 0.2 | 8 | 4 | 50 |
| D3.0XR0.3X8XD4X50 | 3.0 | 0.3 | 8 | 4 | 50 |
| D3.0XR0.5X8XD3X50 | 3.0 | 0.5 | 8 | 3 | 50 |
| D3.0XR0.5X8XD4X50 | 3.0 | 0.5 | 8 | 4 | 50 |
| D3.0XR1.0X8XD3X50 | 3.0 | 1 | 8 | 3 | 50 |
| D3.0XR1.0X8XD4X50 | 4.0 | 1 | 8 | 4 | 50 |
| D4.0XR0.2X11XD4X50 | 4.0 | 0.2 | 11 | 4 | 50 |
| D4.0XR0.3X11XD4X50 | 4.0 | 0.3 | 11 | 4 | 50 |
| D4.0XR0.5X11XD4X50 | 4.0 | 0.5 | 11 | 4 | 50 |
| D4.0XR1.0X11XD4X50 | 4.0 | 1 | 11 | 4 | 50 |
| D5.0XR0.5X13XD5X50 | 5.0 | 0.5 | 13 | 5 | 50 |
| D5.0XR0.5X13XD6X50 | 5.0 | 0.5 | 13 | 6 | 50 |
| D5.0XR1.0X13XD5X50 | 5.0 | 1 | 13 | 5 | 50 |
| D5.0XR1.0X13XD6X50 | 5.0 | 1 | 13 | 6 | 50 |
| D6.0XR0.2X15XD6X50 | 6.0 | 0.2 | 15 | 6 | 50 |
| D6.0XR0.5X15XD6X50 | 6.0 | 0.5 | 15 | 6 | 50 |
| D6.0XR1.0X15XD6X50 | 6.0 | 1 | 15 | 6 | 50 |
| D6.0XR1.5X15XD6X50 | 6.0 | 1.5 | 15 | 6 | 50 |
| D6.0XR2.0X15XD6X50 | 6.0 | 2 | 15 | 6 | 50 |
| D8.0XR0.5X20XD8X60 | 8.0 | 0.5 | 20 | 8 | 60 |
| D8.0XR1.0X20XD8X60 | 8.0 | 1.5 | 20 | 8 | 60 |
| D8.0XR1.5X20XD8X60 | 8.0 | 1.5 | 20 | 8 | 60 |
| D8.0XR2.0X20XD8X60 | 8.0 | 2 | 20 | 8 | 60 |
| D10.0XR0.5X25XD10X75 | 10.0 | 0.5 | 25 | 10 | 75 |
| D10.0XR1.0X25XD10X75 | 10.0 | 1 | 25 | 10 | 75 |
| D10.0XR1.5X25XD10X75 | 10.0 | 1.5 | 25 | 10 | 75 |
| D10.0XR2.0X25XD10X75 | 10.0 | 2 | 25 | 10 | 75 |
| D10.0XR2.5X25XD10X75 | 10.0 | 2.5 | 25 | 10 | 75 |
| D10.0XR3.0X25XD10X75 | 10.0 | 3 | 25 | 10 | 75 |
| D12.0XR0.5X30XD12X75 | 12.0 | 0.5 | 30 | 12 | 75 |
| D12.0XR1.0X30XD12X75 | 12.0 | 1 | 30 | 12 | 75 |
| D12.0XR1.5X30XD12X75 | 12.0 | 1.5 | 30 | 12 | 75 |
| D12.0XR2.0X30XD12X75 | 12.0 | 2 | 30 | 12 | 75 |
| D12.0XR2.5X30XD12X75 | 12.0 | 2.5 | 30 | 12 | 75 |
| D12.0XR3.0X30XD12X75 | 12.0 | 3 | 30 | 12 | 75 |
Our TEX Series corner radius end mills are available from 1.0 mm to 12 mm in diameter, with corner radius options from R0.2 to R3.0. They offer strong versatility for everything from precise pocket features to high-load semi-finishing in stainless steel machining.
Different radius sizes support different cutting needs:
Small diameter + small radius (D1.0–D4.0 / R0.2–R1.0)
Ideal for internal pockets, step transitions, and fine profiles
→ Better accuracy and reduced burrs in SUS304 / SUS316
Medium-large diameter + larger radius (D6–D12 / R1.5–R3.0)
Increased edge strength for dynamic milling and heavy engagement
→ More stable cutting and longer tool life in stainless steel machining
This size range is especially suitable for:
• Pocket milling and bottom surface finishing
• Stainless steel components in medical, energy, and precision industries
• High-speed machining and dynamic toolpaths
For a broader comparison of tool types and cutting priorities, you can also check our guide to the best end mills for stainless steel.
 | Ultra-Fine Carbide Substrate Micro-grain carbide below 0.6 μm with 12% cobalt for balanced hardness, toughness, and wear resistance. Balzers AP Coating (AlCrN) Heat resistance up to 1200°C, with strong oxidation and wear resistance. Optimized Dual Core Geometry — 52% + 70% core design, combined with 8° rake and 45° helix for better chip evacuation and reduced built-up edge. Unequal Tooth Structure 88° / 92° Reduces vibration, improves stability, and supports roughing and dynamic milling. |

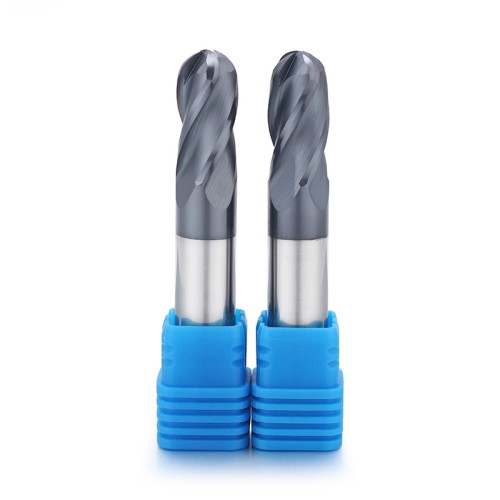

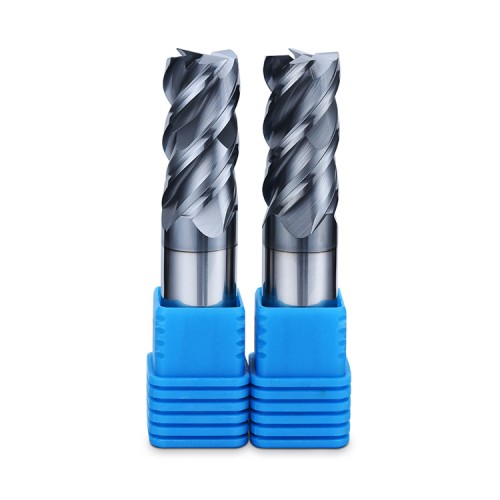

| Feature | TEX square end mil | TEX corner radius end mill | TEX ball nose end mill |
| Primary Machining Type | High-efficiency roughing slotting | Semi-finishing&profile milling | 3D contour finishing |
| Typical Radius | None | R0.2-R3.0 | Ball radius R0.5-R12.5 |
| Vibration Suppression | Good | Very good | Excellent in light cuts |
| Burr Control | Medium | Excellent(Smooth edges) | Excellect on curved shapes |
| Ideal Materials | Stainless steel/alloy steel | Stainless steel/structural steel | Stainless steel/high alloy steel |
| Machining Stage | Roughing | Rough+semi-finish | Semi-finish +finish |
| Picture |  |  |  |
Q1. What is a corner radius end mill used for?
Corner radius end mills are designed to improve tool strength at the corner area.
They are ideal for semi-finishing and finishing flat surfaces, shoulders, slots, and mild 3D contours with higher stability and longer tool life.
Q2. What types of stainless steel does it support?
•304 / 316 austenitic stainless
•410 / 420 martensitic stainless
•Duplex stainless steels
Q3. Do you support OEM customization?
Yes! We customize:
•Corner radius (e.g. R0.5 / R1 / R2…)
•Shank diameter
•Flute length & overall length
•Coating types and geometry
Support mold, medical and automation manufacturing.
Q4. Are standard sizes available in stock?
Yes, standard specifications are available for fast delivery with 1-3 days. Custom milling tools follow order schedule with 7-15 days.
Q5. Could we receive samples for performance testing?
For sample testing, please send us your tool list or application details. We will evaluate feasibility and provide a quotation or sample plan for your reference. If there are no problems, I will apply for free samples.
Q6. Can you provide 2 flute and 4 flute corner radius end mills?
Yes. Dohre CNC can provide both 2 flute and 4 flute options based on different machining requirements.
Q7. How do you handle quality control, and what is your procedure for handling complaints or claims?
We currently have three quality control processes. The tool profile is inspected using the German Helicheckplus testing equipment, and the appearance is inspected using a 2D 150x and 300x magnification microscope. Furthermore, our tool passivation uses a fluid blasting process, and the passivation value can be controlled within 3µm. The tool production also uses German Walter equipment, which effectively improves the precision and quality stability of the tools. Moreover, if there are any quality problems with our products, we will replace them free of charge.
