Dohre MEX Series graphite end mills are designed for graphite electrode, graphite mold, EDM graphite material, graphite plate, and abrasive non-metal material machining.
Graphite is highly abrasive and usually produces fine powder-like dust during dry machining. A suitable graphite end mill needs strong wear resistance, stable cutting edge quality, smooth dust evacuation, and reliable dimensional accuracy.
MEX Series graphite end mills combine ultra-fine carbide, diamond coating, optimized flute geometry, and precision grinding control to support stable performance in graphite finishing, slotting, 3D contour machining, side-wall finishing, and profile machining.
The series includes graphite square end mills, graphite ball nose end mills, and graphite corner radius end mills for different machining requirements. Dohre also supports standard tools, custom graphite end mills, OEM production, and stable batch supply for B2B customers.
MEX Series End Mills for Graphite Machining
MEX Series graphite end mills are developed for machining graphite and abrasive non-metal materials where tool wear, dust evacuation, edge stability, and dimensional consistency are important.

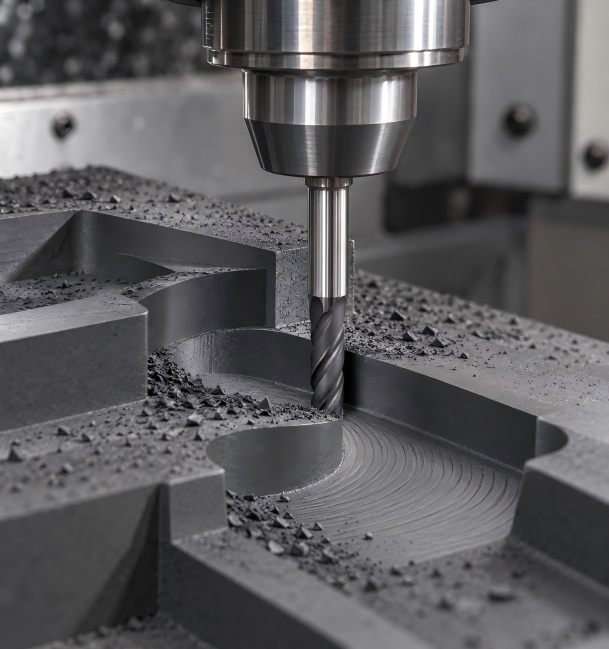

Graphite machining is different from steel, stainless steel, or aluminum machining. The material is abrasive, easy to generate fine dust, and commonly processed under dry cutting or air blow conditions. If the tool coating or flute design is not suitable, graphite dust can accelerate tool wear, affect surface finish, and reduce machining stability.
Dohre MEX Series end mills are designed to support stable cutting performance in graphite electrode machining, graphite mold machining, EDM graphite processing, and abrasive material finishing. With diamond coating, ultra-fine carbide, and optimized cutting geometry, the tools help improve wear resistance, dust evacuation, surface consistency, and tool life.
For different graphite machining features, Dohre provides three main tool geometries: square end mills, ball nose end mills, and corner radius end mills.
Choose the Right Graphite End Mill Type
Different graphite machining areas require different cutter geometries. Selecting the correct end mill type helps improve machining stability, reduce tool wear, and achieve better surface quality.
| Tool Type | Best For | Recommended Product |
|---|
| Graphite Square End Mill | Flat surface finishing, bottom machining, slotting, side milling, and planar machining | Graphite Square End Mill for Finishing and Slotting |
| Graphite Ball Nose End Mill | 3D contour finishing, curved surface machining, mold cavity finishing, and graphite electrode finishing | Graphite Ball Nose End Mill for 3D Finishing |
| Graphite Corner Radius End Mill | Side-wall finishing, shoulder machining, profile finishing, and applications requiring stronger corner protection | Graphite Corner Radius End Mill for Finishing |
Choose a square end mill for flat surfaces and slots, a ball nose end mill for curved surfaces and 3D profiles, and a corner radius end mill when stronger edge protection is required during side-wall or shoulder machining.
Diamond Coating and Tool Design for Graphite Cutting
Graphite machining places high demands on tool wear resistance, coating adhesion, cutting edge stability, and dust evacuation. MEX Series graphite end mills are designed around these cutting conditions.
Diamond coating helps improve wear resistance during dry graphite cutting. It protects the cutting edge from abrasive graphite dust and supports longer tool life in graphite electrode and graphite mold machining.
The ultra-fine carbide substrate provides stable hardness, edge strength, and coating support. A stable carbide base helps maintain cutting edge consistency during long-cycle graphite finishing and semi-finishing operations.
Optimized flute geometry supports smoother graphite dust evacuation. Since graphite produces fine powder-like dust instead of normal metal chips, smooth dust removal is important for surface finish, tool wear control, and stable machining performance.
Different tool geometries are available for different machining needs. Square end mills are suitable for flat surfaces and slotting, ball nose end mills are suitable for 3D finishing and curved surfaces, and corner radius end mills are suitable for side-wall finishing and edge protection.
Applications for Graphite Electrode and Mold Machining
MEX Series graphite end mills are suitable for graphite machining applications that require strong wear resistance, stable surface quality, smooth dust evacuation, and consistent dimensional accuracy.
Suitable workpiece materials include:
Typical machining applications include:
For graphite electrode and mold production, choosing the correct end mill geometry helps reduce tool wear, improve surface consistency, and support more stable batch machining performance.
