Product Description

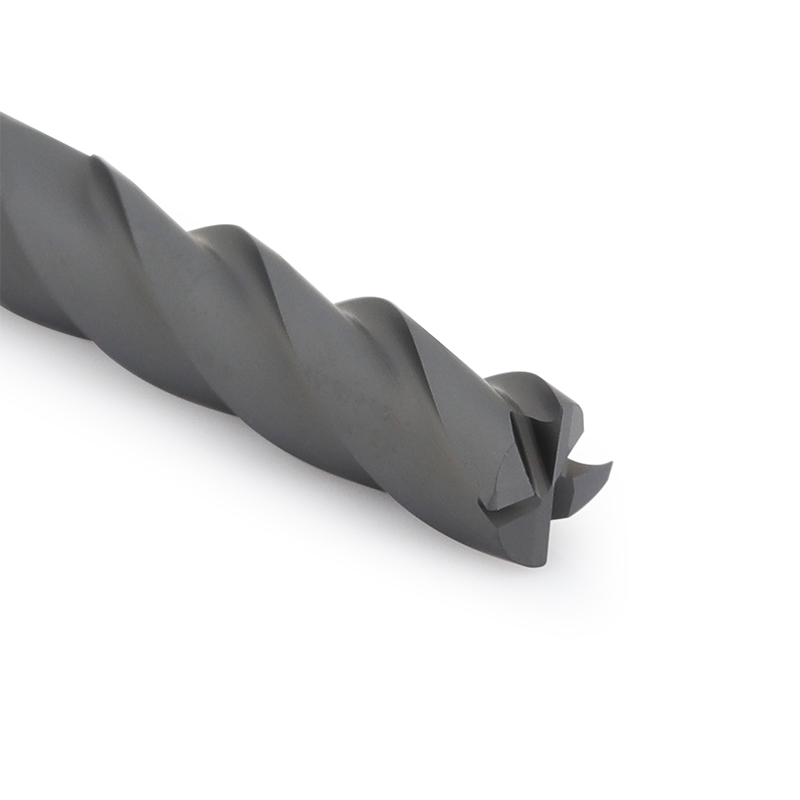

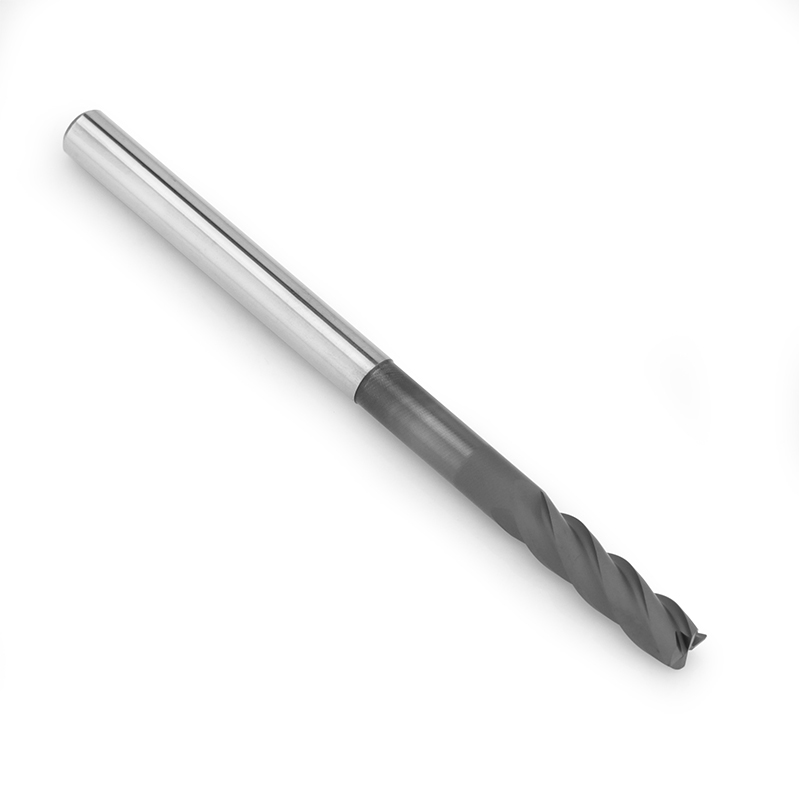

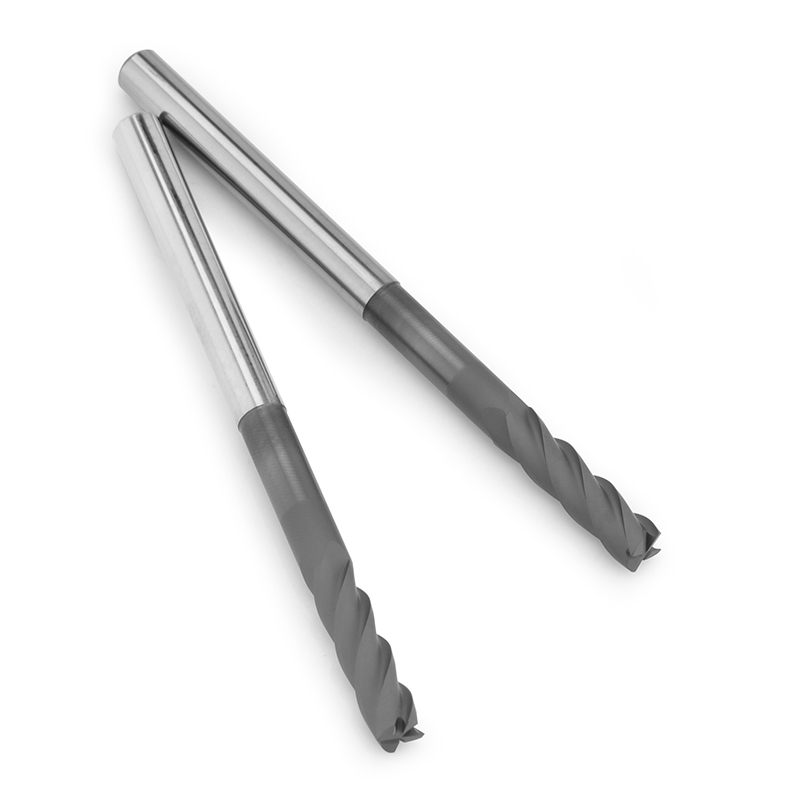

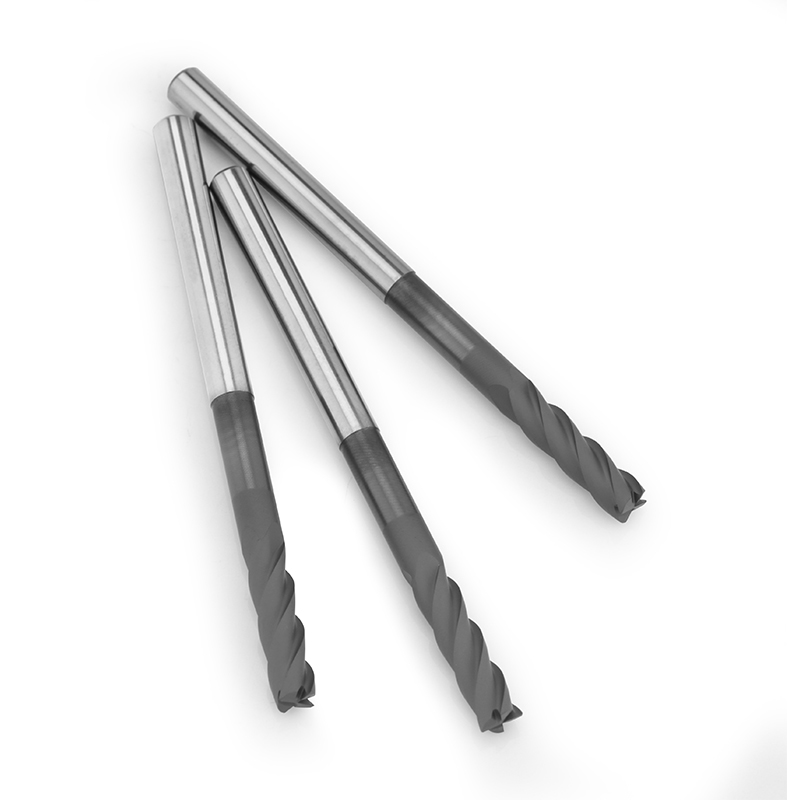

Dohre MEX Series graphite corner radius end mill is designed for graphite electrode, graphite mold, graphite plate, EDM graphite material, and abrasive non-metal material machining.
Graphite is highly abrasive and usually produces fine powder-like dust during dry machining. A suitable graphite end mill needs strong wear resistance, stable cutting edge quality, smooth dust evacuation, and reliable dimensional accuracy.
As a corner radius end mill, this tool is mainly used for graphite finishing, semi-finishing, shoulder machining, side-wall finishing, profile finishing, and applications where better corner strength is required. The corner radius geometry helps reduce stress concentration at the cutting edge and lowers the risk of corner chipping compared with a sharp square end mill.
With ultra-fine carbide, diamond coating, optimized flute geometry, and precision grinding control, the MEX graphite corner radius end mill helps improve tool life, edge durability, surface consistency, and machining stability in graphite electrode and graphite mold production.
This product is not limited to a fixed 4-flute design. Dohre can provide different flute options according to graphite grade, tool diameter, cutting depth, dust evacuation requirement, and surface finish target.
For flat surface machining, bottom surface machining, or graphite slotting, a graphite square end mill is usually more suitable. For 3D curved surfaces, cavity finishing, or freeform profile machining, a graphite ball nose end mill can be considered.
Dohre can provide standard sizes, custom dimensions, OEM production, and application-specific graphite corner radius end mill solutions according to customer machining requirements.
Product Features
Diamond Coating for Graphite Machining
The MEX graphite corner radius end mill uses diamond coating to improve wear resistance during dry graphite machining.
Graphite is an abrasive material that can quickly wear ordinary carbide tools, especially during long-cycle electrode machining, graphite mold finishing, and profile machining. Diamond coating helps protect the cutting edge, reduce abrasive wear, and maintain more stable tool performance during graphite finishing and semi-finishing operations.
Ultra-Fine Carbide Substrate
MEX graphite corner radius end mills use ultra-fine grain carbide with MG 1.0 μm grain size and 6% cobalt content.
This carbide substrate provides stable hardness, edge strength, and coating support for abrasive graphite cutting conditions. A stable carbide base helps improve cutting edge consistency, reduce premature wear, and support longer tool life in graphite electrode and graphite mold machining.
Corner Radius Geometry for Edge Protection
The corner radius design helps improve cutting edge strength by reducing stress concentration at the tool corner.
This geometry is especially useful for graphite side-wall finishing, shoulder machining, profile finishing, and corner transition areas where sharp corners may chip more easily. Compared with a square end mill, a corner radius end mill provides better edge protection and longer tool stability. Compared with a ball nose end mill, it provides better side-wall and shoulder control.
Typical applications include:
• Graphite side-wall finishing
• Graphite shoulder machining
• Profile finishing
• Corner transition machining
• Semi-finishing and finishing
• Graphite electrode machining
• Graphite mold machining
Optimized Flute Design for Graphite Dust Evacuation

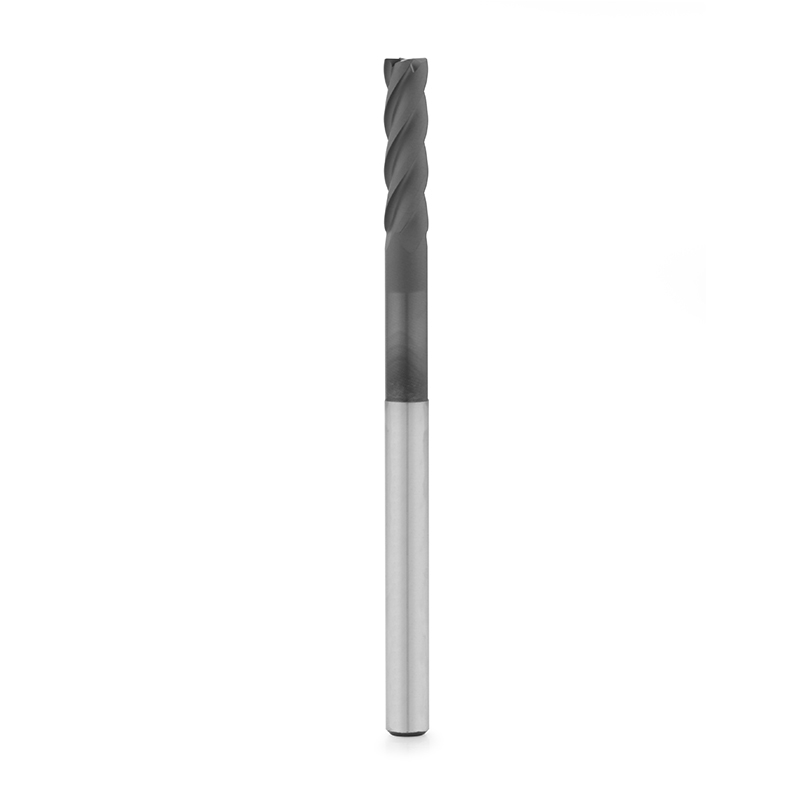

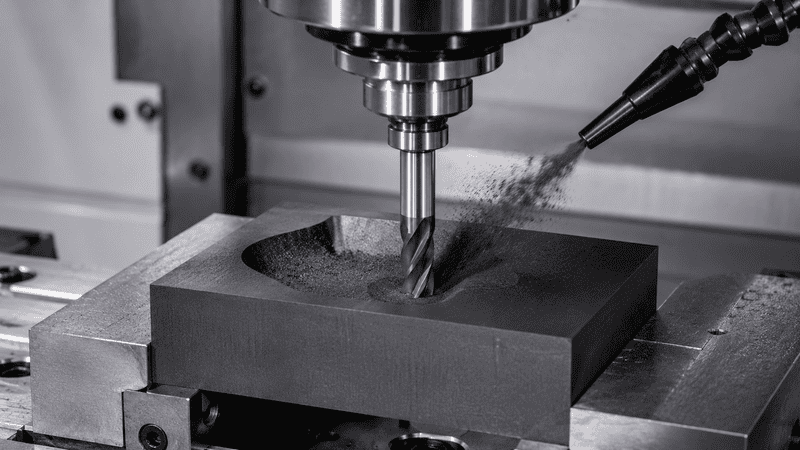

Graphite machining produces fine powder-like dust instead of normal metal chips. If graphite dust cannot be evacuated smoothly, it may affect tool wear, surface finish, and machining stability.
The MEX graphite corner radius end mill uses optimized flute geometry to support smoother dust evacuation during dry cutting and air blow machining conditions.
35° Helix Angle and +6° Rake Angle
The 35° helix angle supports smoother cutting and more stable dust evacuation during graphite machining. The +6° positive rake angle helps reduce cutting resistance and supports stable tool engagement during finishing and semi-finishing operations.
This geometry helps the tool maintain smoother cutting performance in graphite electrode, graphite mold, and abrasive non-metal material machining.
Precision Radius and Runout Control
Stable corner radius, runout control, and dimensional accuracy are important for graphite finishing, especially in electrode machining, mold component machining, and profile finishing.
MEX graphite corner radius end mills are produced with precision grinding control to support stable corner geometry, consistent cutting edge quality, and repeatable machining accuracy.
Applications for Graphite Profile and Edge Finishing
MEX graphite corner radius end mills are suitable for graphite machining applications that require strong wear resistance, stable edge protection, smooth dust evacuation, and consistent surface quality.
Suitable workpiece materials include:
Typical machining applications include:
• Graphite finishing
• Graphite semi-finishing
• Side-wall finishing
• Shoulder machining
• Profile finishing
• Corner transition machining
• Graphite electrode machining
• Graphite mold finishing
• Dry cutting with air blow
Recommended tool selection:
| Machining Need | Recommended Tool |
|---|
| Side-wall finishing | MEX Graphite Corner Radius End Mill |
| Shoulder machining | MEX Graphite Corner Radius End Mill |
| Profile finishing | MEX Graphite Corner Radius End Mill |
| Corner transition machining | MEX Graphite Corner Radius End Mill |
| Finishing with better edge protection | MEX Graphite Corner Radius End Mill |
| Semi-finishing with reduced corner chipping | MEX Graphite Corner Radius End Mill |
| Flat surface machining | MEX Graphite Square End Mill |
| Bottom surface machining | MEX Graphite Square End Mill |
| Graphite slotting | MEX Graphite Square End Mill |
| 3D curved surface machining | MEX Graphite Ball Nose End Mill |
| Mold cavity finishing | MEX Graphite Ball Nose End Mill |
For graphite finishing, choosing the correct cutter shape helps improve edge durability, reduce tool wear, and maintain stable surface quality during long production cycles.
Manufacturing & Quality Control
Dohre manufactures graphite end mills for B2B customers who need stable tool quality, repeatable cutting performance, custom tool support, and reliable batch supply.
German Walter 5-Axis Grinding

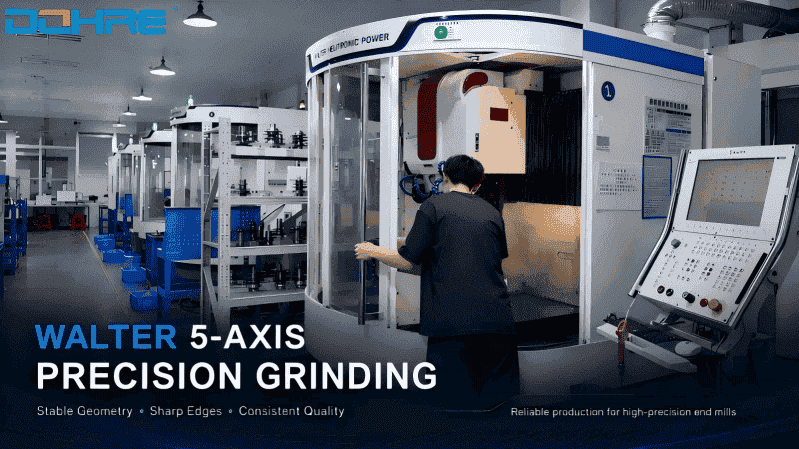

MEX graphite corner radius end mills are produced using German Walter 5-axis high-precision grinding machines. This helps maintain stable flute geometry, accurate tool dimensions, consistent corner radius, and cutting edge quality.

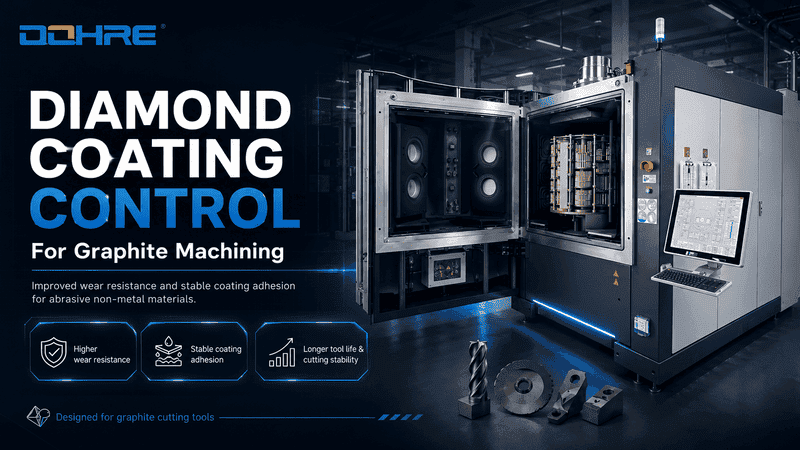

Diamond Coating Control
Graphite machining places high demands on coating wear resistance and coating adhesion. Dohre uses diamond coating designed for abrasive non-metal material machining to help improve tool life and cutting stability.

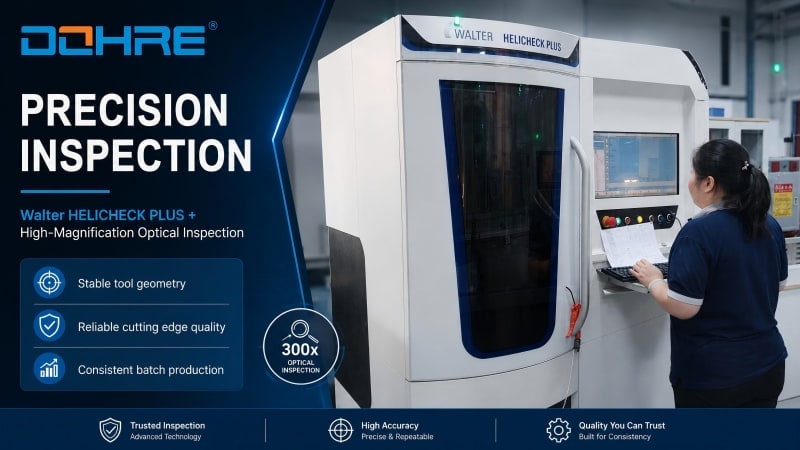

Walter HELICHECK PLUS Inspection
Tool diameter, flute geometry, runout, corner radius, cutting edge profile, and key dimensions can be inspected with Walter HELICHECK PLUS measuring equipment. This helps support consistent tool geometry and stable batch quality.

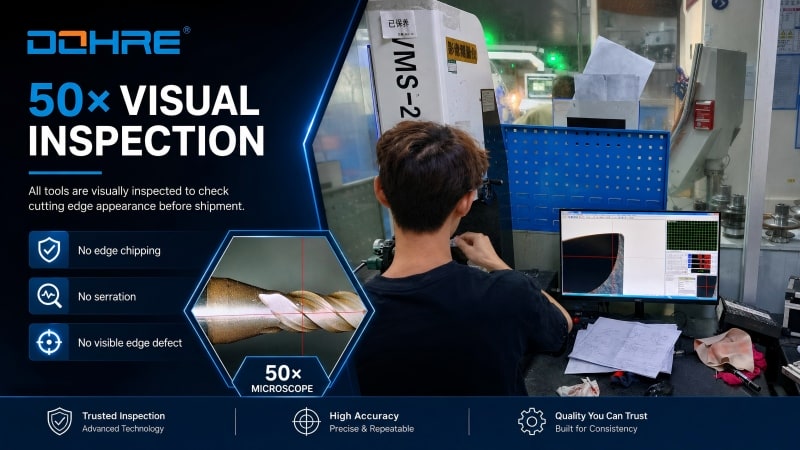

High-Magnification Edge Inspection
High-magnification optical inspection is used to check cutting edge appearance, edge chipping, serration, coating condition, and visible defects before shipment.
Custom and OEM Graphite Corner Radius End Mills

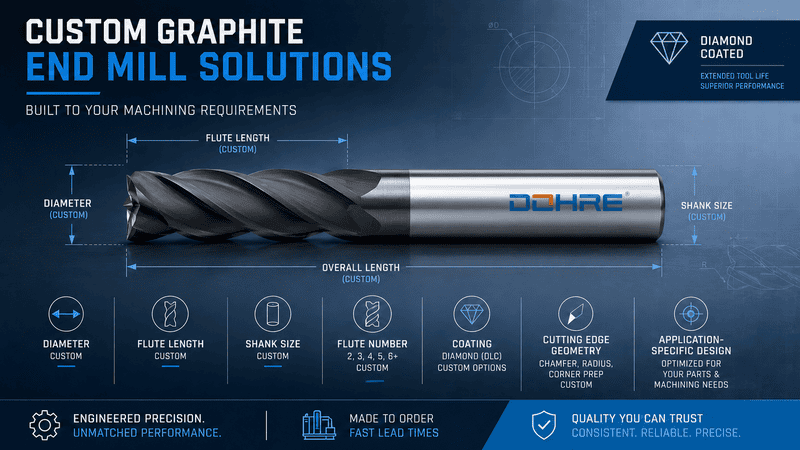

For custom graphite corner radius end mill orders, Dohre can support diameter, flute length, overall length, shank size, flute number, corner radius, coating, cutting edge geometry, and application-specific tool design according to customer machining requirements.
From carbide material selection to precision grinding, diamond coating, edge inspection, and final quality control, Dohre focuses on stable tool performance for graphite electrode manufacturing, graphite mold machining, EDM electrode production, and precision CNC machining factories.
FAQ & Contact Us
Q1: What is a graphite corner radius end mill used for?
A graphite corner radius end mill is mainly used for side-wall finishing, shoulder machining, profile finishing, corner transition machining, semi-finishing, and finishing of graphite electrodes, graphite molds, and graphite plates.
Q2: Why choose a corner radius end mill for graphite machining?
The corner radius helps reduce stress concentration at the cutting edge and improves edge strength. This can help reduce corner chipping and improve tool life during graphite finishing and semi-finishing.
Q3: Is this tool only available in 4 flutes?
No. Dohre can provide different flute options according to graphite grade, cutting condition, dust evacuation requirement, tool diameter, and surface finish target.
Q4: Why use diamond coating for graphite machining?
Graphite is highly abrasive and can cause fast tool wear. Diamond coating helps improve wear resistance, protect the cutting edge, and extend tool life during dry graphite machining.
Q5: Can this graphite corner radius end mill be used for finishing?
Yes. The MEX graphite corner radius end mill is suitable for graphite finishing and semi-finishing, especially for side walls, shoulders, profiles, and corner transition areas.
Q6: Can this tool be used for graphite slotting?
A corner radius end mill can be used in some slotting or semi-finishing conditions, but for flat-bottom slotting and high-efficiency planar machining, a graphite square end mill is usually more suitable.
Q7: What is the difference between a graphite corner radius end mill and a graphite square end mill?
A graphite square end mill is better for flat surfaces, slots, bottom surfaces, and clear square edges. A graphite corner radius end mill provides stronger corner protection and is more suitable for side-wall finishing, shoulder machining, and profile finishing.
Q8: What is the difference between a graphite corner radius end mill and a graphite ball nose end mill?
A graphite corner radius end mill is better for side-wall finishing, shoulder machining, and edge protection. A graphite ball nose end mill is better for 3D curved surfaces, cavity finishing, and smooth contour machining.
Q9: Can Dohre customize graphite corner radius end mills?
Yes. Dohre supports custom graphite corner radius end mills, including diameter, flute length, overall length, shank size, flute number, corner radius, coating, cutting edge geometry, and OEM production.
Q10: Are you a graphite end mill manufacturer?
Yes. Dohre manufactures carbide end mills for graphite, aluminum, carbon steel, stainless steel, mold steel, hardened steel, titanium alloy, and custom machining applications. Standard tools, OEM graphite end mills, and custom cutting tool solutions are available.
