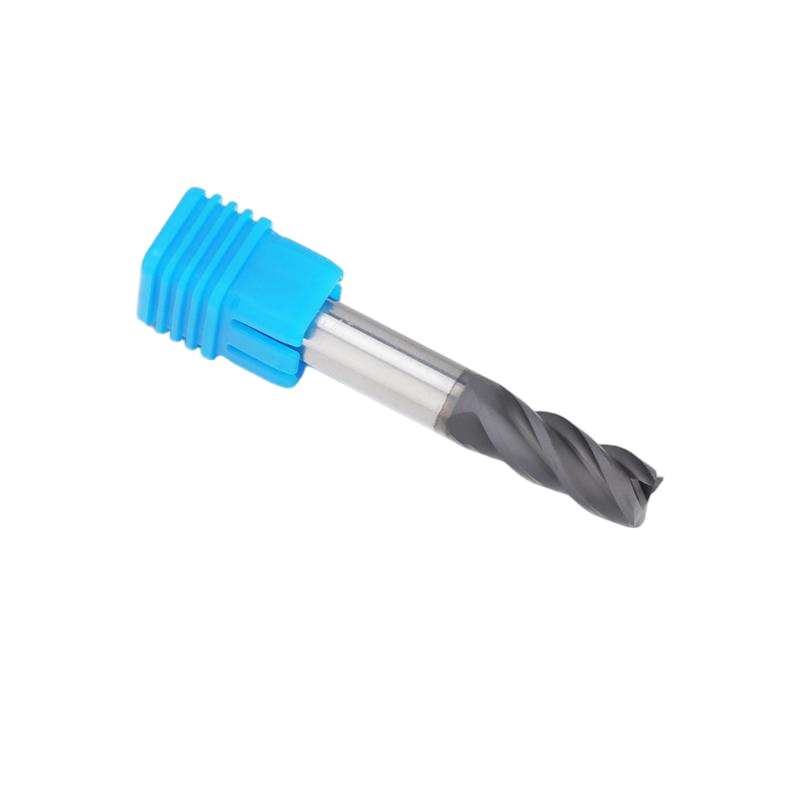

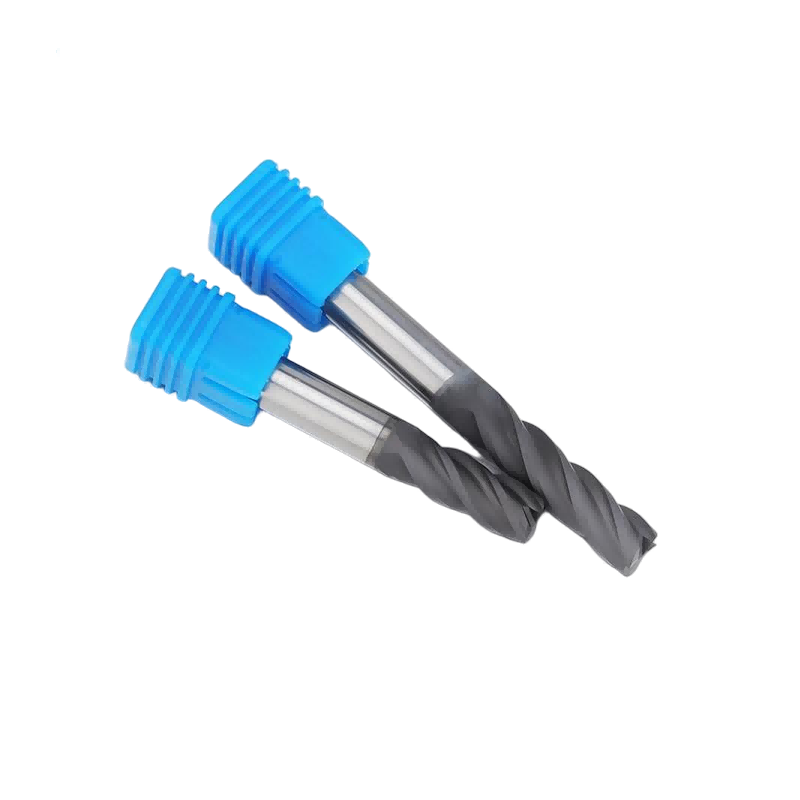

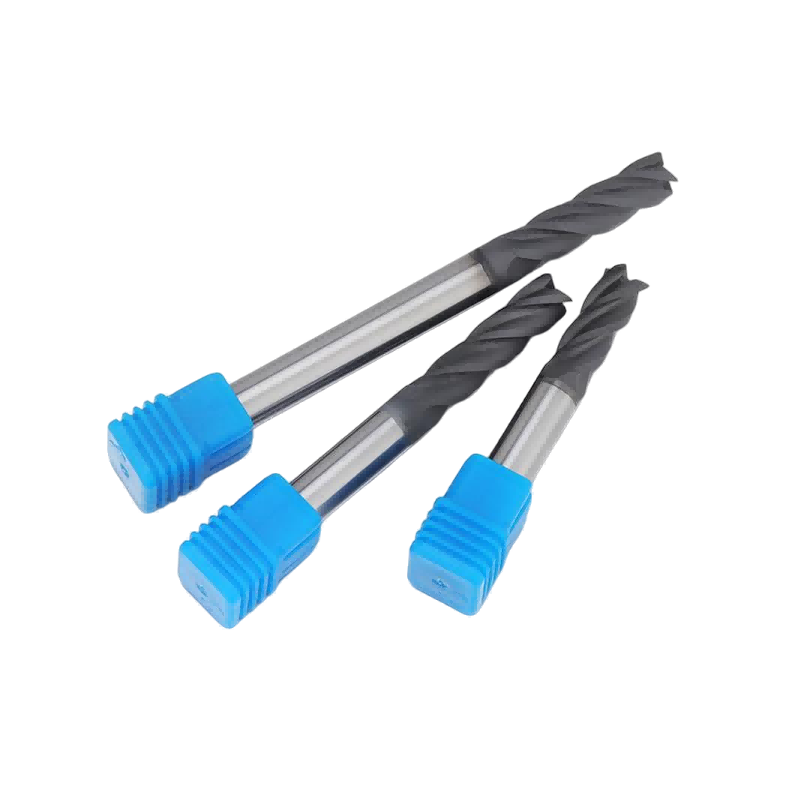

Graphite Square End Mill for Finishing and Slotting | MEX Series

Dohre MEX Series graphite square end mill is designed for graphite electrode, graphite mold, graphite plate, EDM graphite material, and abrasive non-metal material machining.

Graphite is highly abrasive and usually produces fine powder-like dust during dry machining. Compared with ordinary metal cutting, graphite machining requires stronger wear resistance, stable cutting edge quality, smooth dust evacuation, and reliable dimensional accuracy.

As a square end mill, the MEX graphite end mill is mainly used for flat surface machining, bottom surface machining, graphite slotting, side milling, contouring, semi-finishing, and finishing. The square end geometry helps produce flat bottoms, straight side walls, clean slot shapes, and stable surface quality.

With ultra-fine carbide, diamond coating, optimized flute geometry, and precision grinding control, this graphite square end mill helps improve tool life, surface consistency, and machining stability in graphite cutting applications.

Dohre can provide different flute options, including 2-flute and 4-flute designs, according to graphite grade, tool diameter, cutting depth, dust evacuation requirement, and surface finish target. Standard sizes, custom dimensions, OEM production, and application-specific graphite end mill solutions are available.

For complex 3D curved surfaces, a graphite ball nose end mill is usually more suitable. For side-wall machining or profile finishing where stronger corner protection is required, a graphite corner radius end mill can be considered.

Diamond Coating for Graphite Machining

The MEX graphite square end mill uses diamond coating to improve wear resistance during dry graphite machining. Graphite is an abrasive material that can quickly wear ordinary carbide tools, especially in long-cycle electrode and mold machining.

Diamond coating helps protect the cutting edge, reduce abrasive wear, and maintain more stable tool performance during graphite finishing, slotting, and semi-finishing operations.

Special parent material of the diamond coating.

high-purity diamond coating material, Hardness can reach more than 80 gpa. Wear resistance, superior performance, the most suitable for machining graphite, high-silicon aluminum alloy, fiber resin(FRP)

Ultra-Fine Carbide Substrate

MEX graphite square end mills use ultra-fine grain carbide with MG 1.0 μm grain size and 6% cobalt content. This carbide substrate provides stable hardness, edge strength, and coating support for abrasive graphite cutting conditions.

A stable carbide base helps improve cutting edge consistency and supports longer tool life in graphite electrode, graphite mold, and abrasive non-metal material machining.

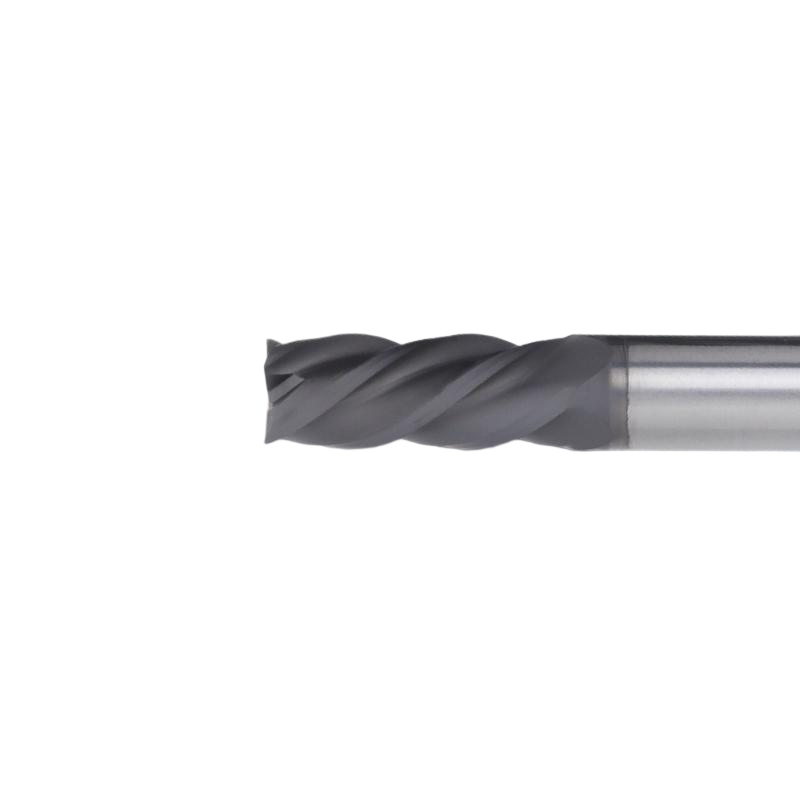

Square End Geometry for Flat Surface and Slotting

The square end design is suitable for applications that require flat bottoms, straight side walls, clean slot shapes, and stable planar surfaces.

It is suitable for graphite flat surface finishing, bottom surface machining, graphite slotting, side milling, contour machining, and general graphite profile machining.

Compared with a graphite ball nose end mill, a square end mill is more suitable for flat surface and slot machining. Compared with a graphite corner radius end mill, it is more suitable when the workpiece requires a clear square edge or flat-bottom shape.

Optimized Flute Design for Dust Evacuation

Graphite machining produces fine dust instead of normal metal chips. If graphite dust cannot be removed smoothly, it may affect tool wear, surface finish, and machining stability.

The MEX graphite square end mill uses optimized flute geometry to support smoother graphite dust evacuation. It is suitable for dry cutting and air blow conditions commonly used in graphite machining.

2-Flute and 4-Flute Options Available

This product is not limited to one fixed flute design. Dohre can provide 2-flute and 4-flute options according to the customer’s machining conditions.

A 2-flute graphite end mill provides larger flute space and is suitable when dust evacuation is more important.

A 4-flute graphite end mill provides more cutting edges and stronger finishing stability, which is suitable for stable semi-finishing and finishing applications.

Precision Grinding and Runout Control

Stable runout and dimensional accuracy are important for graphite finishing, especially in electrode machining and mold component machining.

MEX graphite square end mills are produced with precision grinding control to support stable cutting edge geometry, consistent tool dimensions, and reliable machining accuracy.

MEX graphite square end mills are suitable for graphite machining applications that require strong wear resistance, stable cutting performance, smooth dust evacuation, and consistent surface quality.

Suitable workpiece materials include:

• •Graphite electrode

• •Graphite mold

• •Graphite plate

• •EDM graphite material

• •Graphite composite material

• •Engineering plastics

• •Fiberglass

• •Fiber resin

• •Ceramic

• •Aluminum oxide

• •Zirconium oxide

• •Other abrasive non-metal materials

Typical machining applications include:

• •Graphite finishing

• •Graphite semi-finishing

• •Graphite slotting

• •Flat surface machining

• •Bottom surface machining

• •Side milling

• •Contour machining

• •Graphite electrode machining

• •Graphite mold machining

• •Dry cutting with air blow

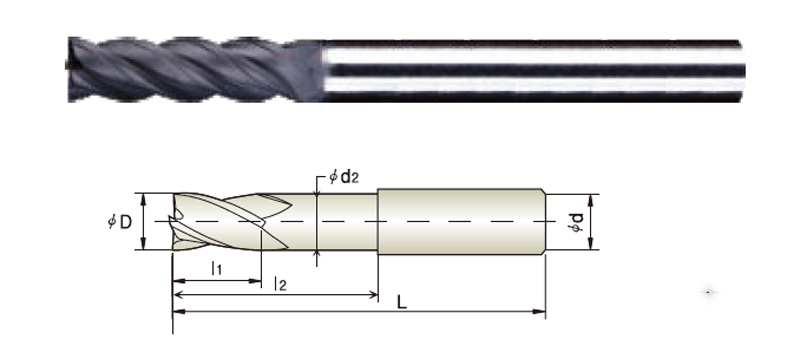

Recommended tool selection:

Dohre manufactures graphite end mills for B2B customers who need stable tool quality, repeatable cutting performance, custom tool support, and reliable batch supply.

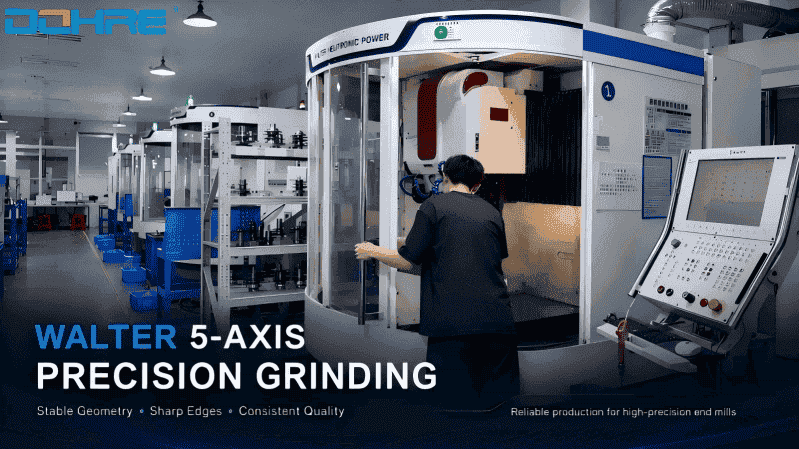

German Walter 5-Axis Grinding

MEX graphite square end mills are produced using German Walter 5-axis high-precision grinding machines. This helps maintain stable flute geometry, accurate tool dimensions, and consistent cutting edge quality.

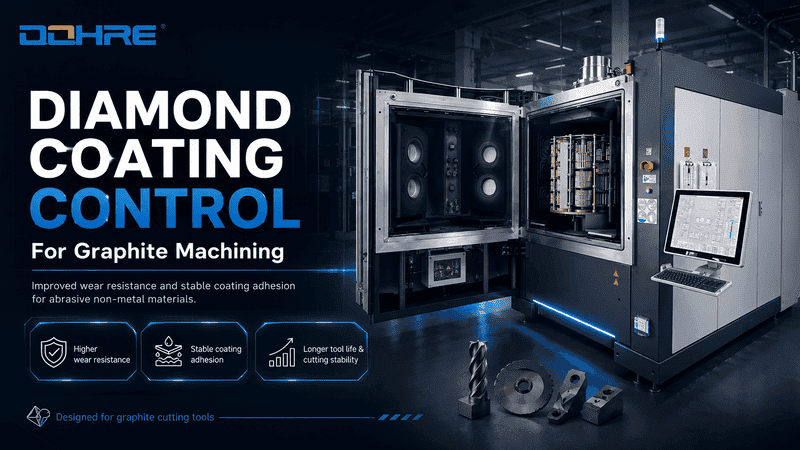

Diamond Coating Control

Graphite machining places high demands on coating wear resistance and coating adhesion. Dohre uses diamond coating designed for abrasive non-metal material machining to help improve tool life and cutting stability.

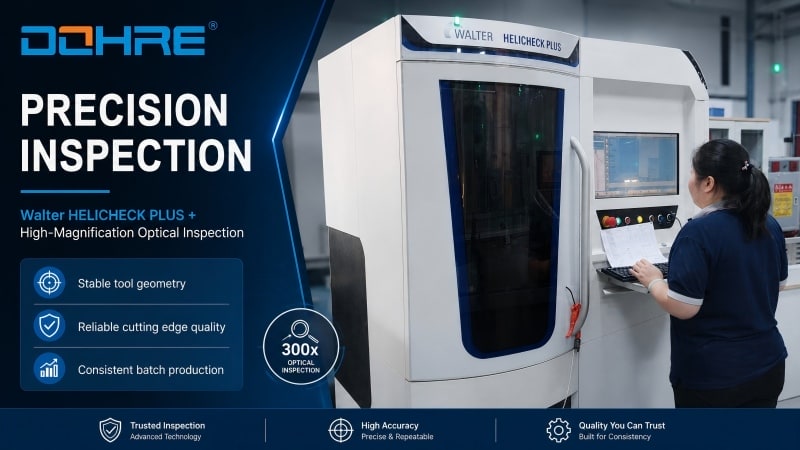

Walter HELICHECK PLUS Inspection

Tool diameter, flute geometry, runout, cutting edge profile, and key dimensions can be inspected with Walter HELICHECK PLUS measuring equipment. This helps support consistent tool geometry and stable batch quality.

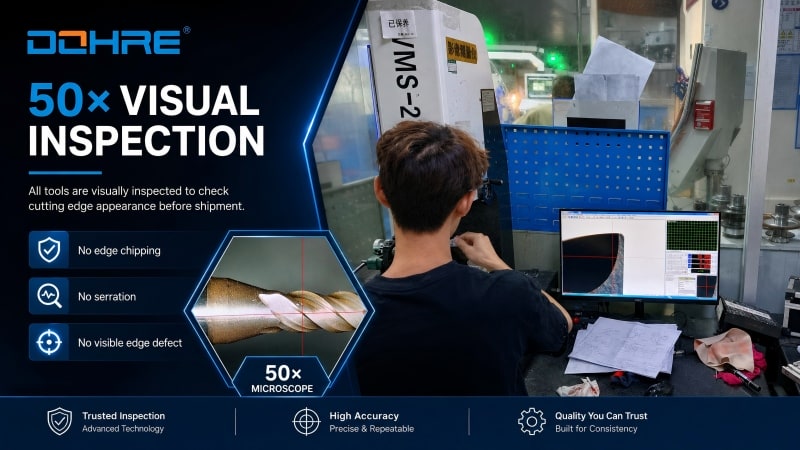

High-Magnification Edge Inspection

High-magnification optical inspection is used to check cutting edge appearance, edge chipping, serration, coating condition, and visible defects before shipment.

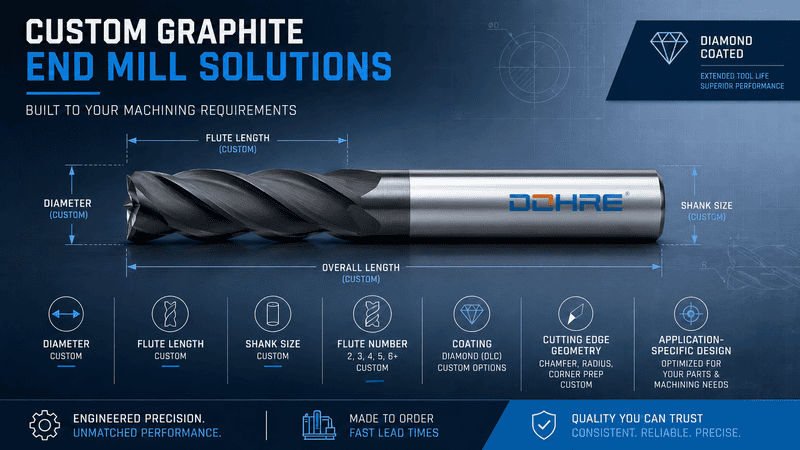

Custom and OEM Graphite End Mills

For custom graphite end mill orders, Dohre can support diameter, flute length, overall length, shank size, flute number, coating, cutting edge geometry, and application-specific tool design according to customer machining requirements.

From carbide material selection to precision grinding, diamond coating, edge inspection, and final quality control, Dohre focuses on stable tool performance for graphite electrode manufacturing, graphite mold machining, EDM electrode production, and precision CNC machining factories

Q1: What is a graphite square end mill used for?

A graphite square end mill is mainly used for flat surface machining, bottom surface machining, slotting, side milling, contouring, semi-finishing, and finishing of graphite electrodes, graphite molds, and graphite plates.

Q2: Is this tool only available in 4 flutes?

No. Dohre can provide different flute options, including 2-flute and 4-flute designs, according to graphite grade, cutting condition, dust evacuation requirement, tool diameter, and surface finish target.

Q3: Why use a diamond coated end mill for graphite?

Graphite is highly abrasive and can cause fast tool wear. Diamond coating helps improve wear resistance, protect the cutting edge, and extend tool life during dry graphite machining.

Q4: Can this graphite square end mill be used for finishing?

Yes. The MEX graphite square end mill is suitable for graphite finishing and semi-finishing, especially for flat surfaces, slots, side walls, and graphite electrode machining.

Q5: Can this tool be used for graphite slotting?

Yes. The square end geometry is suitable for graphite slotting, bottom surface machining, and side milling. For deeper slots or higher dust evacuation requirements, flute number and cutting parameters should be selected carefully.

Q6: What is the difference between a graphite square end mill and a graphite ball nose end mill?

A graphite square end mill is better for flat surfaces, slots, bottom surfaces, and side walls. A graphite ball nose end mill is better for curved surfaces, 3D contours, and mold profile finishing.

Q7: What is the difference between a graphite square end mill and a graphite corner radius end mill?

A graphite square end mill provides a flat bottom and clear square edge. A graphite corner radius end mill provides stronger corner protection and can help reduce corner chipping during side-wall or profile machining.

Q8: Is coolant required when machining graphite?

Graphite is commonly machined under dry cutting or air blow conditions. Coolant is usually not required because it may form graphite slurry, which can affect machining stability and cleaning.

Q9: Can Dohre customize graphite end mills?

Yes. Dohre supports custom graphite end mills, including diameter, flute length, overall length, shank size, flute number, coating, cutting edge geometry, and OEM production.

Q10: Are you a graphite end mill manufacturer?

Yes. Dohre manufactures carbide end mills for graphite, aluminum, carbon steel, stainless steel, mold steel, hardened steel, titanium alloy, and custom machining applications. Standard tools, OEM graphite end mills, and custom cutting tool solutions are available.

Get In Touch

Need graphite square end mills for finishing and slotting?

Contact us for standard MEX graphite square end mills, custom diamond coated graphite end mills, and OEM manufacturing support.
