CBN Ball Nose End Mill for HRC60+ Hardened Steel Finishing

The Dohre CBN ball nose end mill is designed for HRC60+ hardened steel finishing, quenched steel machining, and high-precision 3D mold surface finishing.

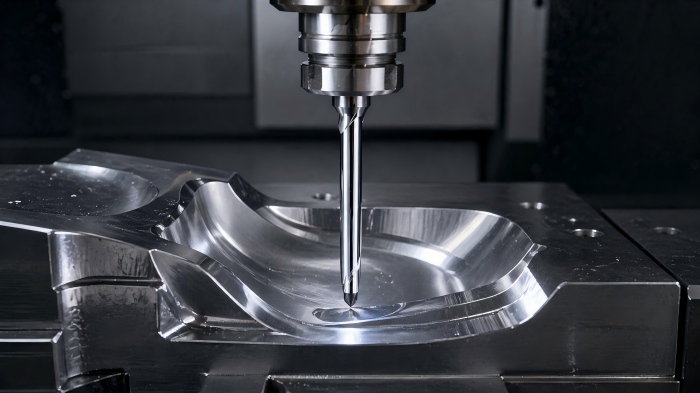

Unlike a square end mill or corner radius end mill, the ball nose geometry is mainly used for curved surfaces, 3D contours, mold cavities, freeform profiles, and smooth surface transitions. It is especially suitable for hardened mold finishing where contour accuracy, surface consistency, and stable tool life are important.

This tool is suitable for precision finishing of hardened steel, quenched steel, die steel, mold cavities, automotive headlamp molds, lens molds, small precision cavities, thin-wall hardened parts, and complex 3D profiles.

CBN tools are not always used to replace carbide in every machining condition. They are more suitable when the workpiece hardness, finishing allowance, machine rigidity, toolpath stability, and surface quality requirement match the characteristics of CBN tools. For a broader comparison, see When Should You Use a CBN End Mill Instead of Carbide?

NL900 CBN Material for HRC60+ Machining

The cutter is made from Dohre's self-developed NL900 CBN material, which is suitable for finishing hardened steel and quenched steel where ordinary carbide tools may wear quickly or lose dimensional stability.

The 1.0 μm fine grain structure and HV4100+ hardness help improve edge stability, wear resistance, and thermal stability during high-hardness steel finishing. This supports better dimensional consistency and longer cutting performance in continuous precision machining.

Vacuum Brazing for Stable CBN Edge Bonding

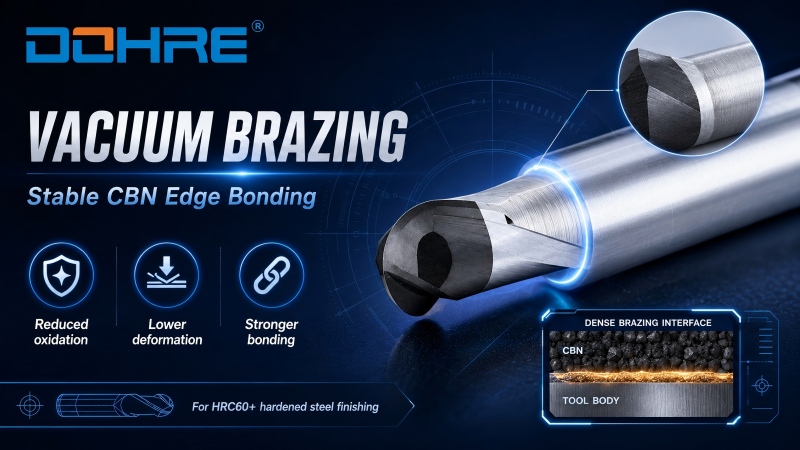

The tool uses a vacuum brazing process to improve bonding stability between the CBN cutting part and the tool body. Compared with ordinary brazing, vacuum brazing helps reduce oxidation, reduce insert deformation, and improve bonding strength.

For HRC60+ hardened steel finishing, stable CBN edge bonding is important because cutting force, cutting heat, vibration, and long-cycle finishing can directly affect tool life and surface finish.

Ball Nose Geometry for 3D Contour Finishing

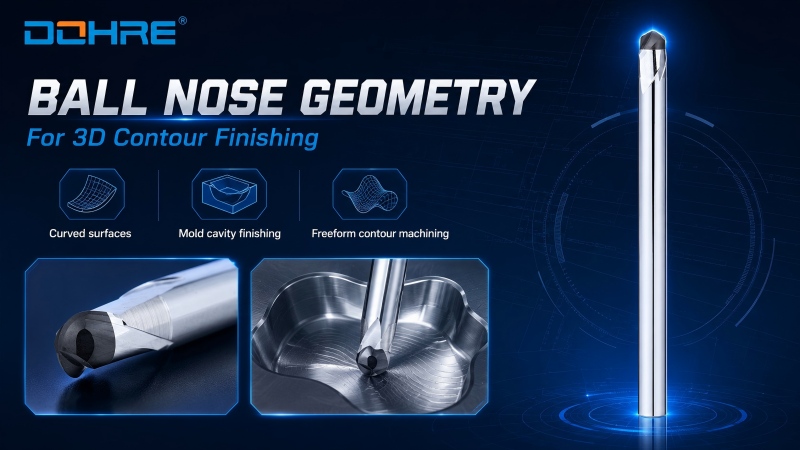

The ball nose geometry is designed for 3D surface finishing, curved surface machining, mold cavity finishing, and freeform contour machining.

Compared with a CBN flat end mill, a ball nose tool is more suitable for curved and 3D surfaces. Compared with a CBN corner radius end mill, it performs better on complex profiles where the cutting contact angle changes continuously.

For users comparing different CBN tool shapes, this guide explains the difference more clearly: CBN End Mill for Hardened Steel: Square vs Ball Nose vs Corner Radius

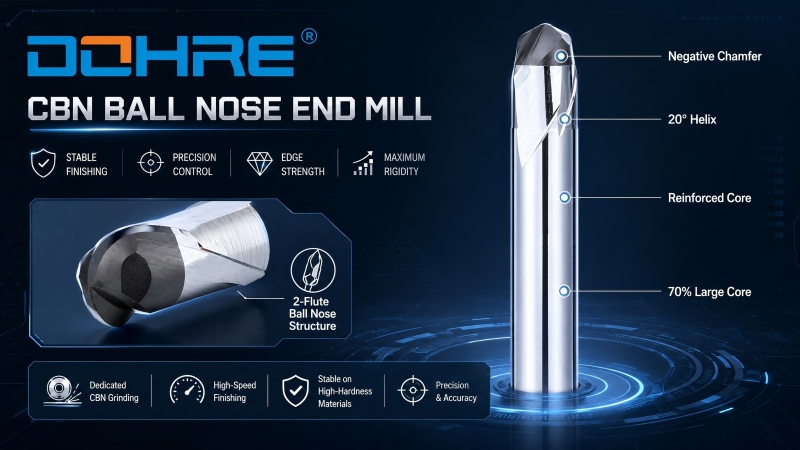

Reinforced Core and Negative Chamfer Edge

The tool adopts a reinforced geometry design for stable finishing of high-hardness materials.

Key geometry features include:

• 70% large core diameter for higher rigidity

• 20° helix angle for stable cutting and smoother machining

• Negative chamfer edge to strengthen the cutting edge

• 2-flute ball nose structure for precision finishing

• Dedicated CBN grinding process for accurate edge forming

• High-speed finishing capability under suitable conditions

This structure is designed for finishing and semi-finishing rather than heavy roughing. It is more suitable for stable cutting conditions where edge strength, surface quality, and dimensional accuracy are more important than large material removal.

Stable Tool Life and Surface Finish

The combination of NL900 CBN material, vacuum brazing, reinforced core design, negative chamfer edge, and precise ball radius grinding helps improve tool life and surface quality under suitable finishing conditions.

Tool life is affected by workpiece hardness, finishing allowance, cutting parameters, machine rigidity, tool overhang, runout, clamping condition, and toolpath stability. When chipping or fast wear occurs too early, it is often related to unstable cutting conditions, wrong application range, or unsuitable cutting parameters. More details are explained in: Why Do CBN End Mills Chip or Wear Quickly? Causes and Solutions

Core Advantages Benchmarked Against Japanese and European CBN Tools

Dohre CBN ball nose end mills are developed for HRC60+ hardened steel finishing, precision mold cavity machining, and high-accuracy 3D contour finishing. The design is benchmarked against selected Japanese and European CBN ball nose end mills, with a focus on CBN material stability, edge strength, radius accuracy, surface quality, and tool life under stable finishing conditions.

These advantages help improve contour accuracy, surface consistency, and tool life in HRC60+ hardened steel finishing. For precision mold cavity machining, the combination of NL900 CBN material, fine grain structure, reinforced core design, and accurate ball radius grinding helps Dohre tools maintain more stable cutting performance in long-cycle finishing operations.

Note: Actual performance may vary depending on workpiece hardness, finishing allowance, cutting parameters, machine rigidity, tool holding, runout, coolant condition, and toolpath stability.

Dohre CBN ball nose end mills are mainly used for high-precision finishing of hardened steel, quenched steel, and hardened mold materials.

Suitable workpiece materials include:

• HRC60+ hardened steel

• Quenched steel

• Hardened mold steel

• High-hardness die steel

• Heat-treated steel parts

• Precision mold cavities

• Automotive headlamp molds

• Lens molds

• Small hardened inserts and precision components

CBN tool selection should not depend only on the material name. The actual workpiece hardness, finishing allowance, setup rigidity, and surface requirement should also be considered. For more details, see: What Hardness Range Is Suitable for a CBN End Mill?

For hardened steel finishing where surface accuracy and tool life are both important, this article may also help:

Using CBN End Mills to Achieve High Accuracy When Milling Hardened Steel

Dohre focuses on CBN tool manufacturing, vacuum brazing, precision grinding, ball radius accuracy, edge consistency, and final inspection. For CBN ball nose end mills, manufacturing stability is especially important because small geometry errors can directly affect 3D contour accuracy, surface finish, and tool life.

Dedicated CBN Grinding Process

CBN tools require dedicated grinding processes and grinding wheels. Dohre uses precision grinding equipment and CBN-specific grinding methods to maintain edge sharpness, geometry consistency, and stable tool quality.

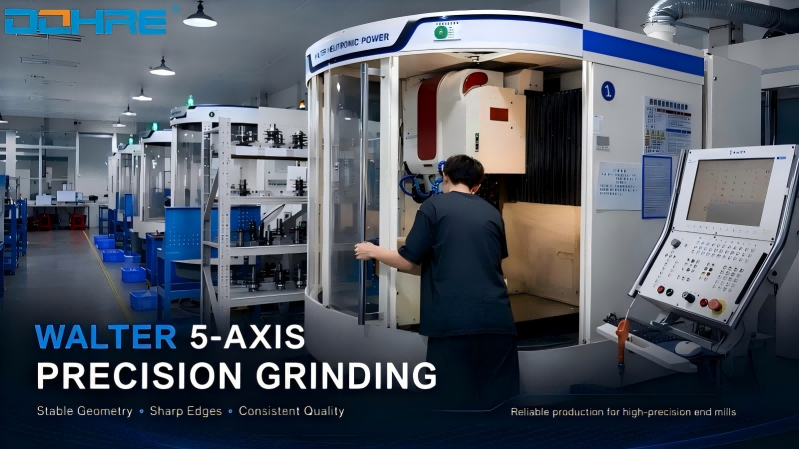

German Walter 5-Axis Grinding Machines

CBN ball nose end mills are produced using German Walter 5-axis high-precision grinding machines. This helps maintain accurate flute geometry, stable dimensions, and repeatable cutting edge quality.

Ball Radius Grinding Accuracy

For CBN ball nose end mills, ball radius grinding accuracy can be controlled within ±0.003–0.005 mm. This helps improve profile accuracy, surface consistency, and dimensional stability during precision mold finishing.

R0.1 Minimum Ball Radius Capability

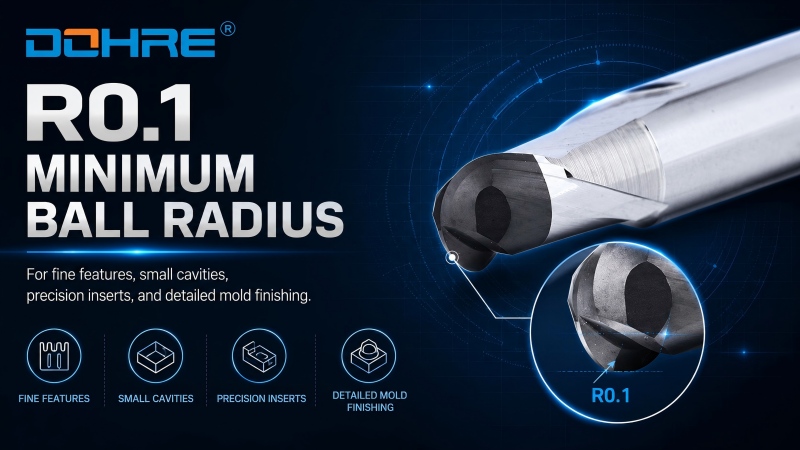

Dohre can provide small ball radius options such as R0.1 for fine features, small cavities, precision inserts, and detailed mold finishing applications.

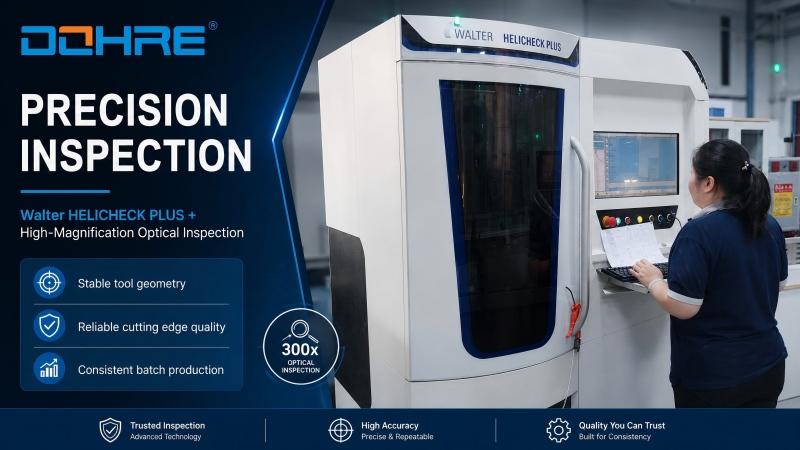

Walter HELICHECK PLUS Inspection

Tool profile, ball radius, and key dimensions are inspected using Walter HELICHECK PLUS measuring equipment. This helps ensure stable tool geometry and consistent batch quality.

High-Magnification Edge Inspection

CBN cutting edges are inspected under high magnification to check edge condition, micro-chipping, cracks, serration, and visible defects before delivery.

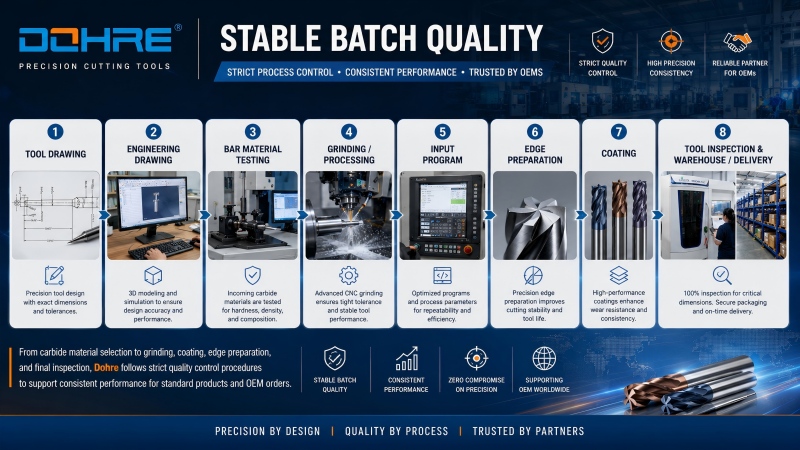

Stable Quality for OEM Orders

From NL900 CBN material selection to vacuum brazing, precision grinding, radius inspection, edge inspection, and final quality control, Dohre follows strict procedures to support stable tool performance for hardened steel finishing and OEM CBN tool orders.

Q1: What is a CBN ball nose end mill used for?
A CBN ball nose end mill is mainly used for 3D contour finishing, curved surface machining, hardened mold cavity finishing, lens mold finishing, and precision profile machining of HRC60+ hardened steel and quenched steel.

Q2: When should I choose a CBN ball nose end mill instead of a CBN flat end mill?
Choose a CBN ball nose end mill when the part requires curved surfaces, 3D contours, freeform profiles, or smooth surface transitions. A CBN flat end mill is more suitable for flat surfaces, bottom finishing, and straight edges.

Q3: When should I choose a CBN corner radius end mill instead?
A CBN corner radius end mill is more suitable for shoulder finishing, side-wall finishing, step machining, and applications where corner strength and edge protection are more important.

Q4: Is this CBN ball nose end mill suitable for roughing?
It is mainly recommended for finishing and semi-finishing. CBN tools perform better in stable cutting conditions. Heavy roughing, large cutting allowance, unstable engagement, or excessive interrupted cutting may increase the risk of edge chipping.

Q5: What hardness range is suitable for this tool?
This tool is mainly designed for HRC60+ hardened steel and quenched steel finishing. Actual suitability depends on machine rigidity, tool holding, cutting parameters, toolpath stability, and finishing allowance.

Q6: Can it be used for high-speed finishing?
Yes. Under suitable machining conditions, this CBN ball nose end mill can be used for high-speed finishing of hardened steel. Cutting speed, spindle speed, oil mist, tool holding, and workpiece rigidity should be matched carefully.

Q7: Can Dohre customize CBN ball nose end mills?
Yes. Dohre supports custom CBN ball nose end mills, including diameter, ball radius, effective length, overall length, shank size, flute structure, and application-specific geometry.

Q8: Are you a CBN ball nose end mill manufacturer?
Yes. Dohre manufactures CBN end mills for hardened steel and quenched steel finishing, including CBN flat end mills, CBN ball nose end mills, and CBN corner radius end mills.
