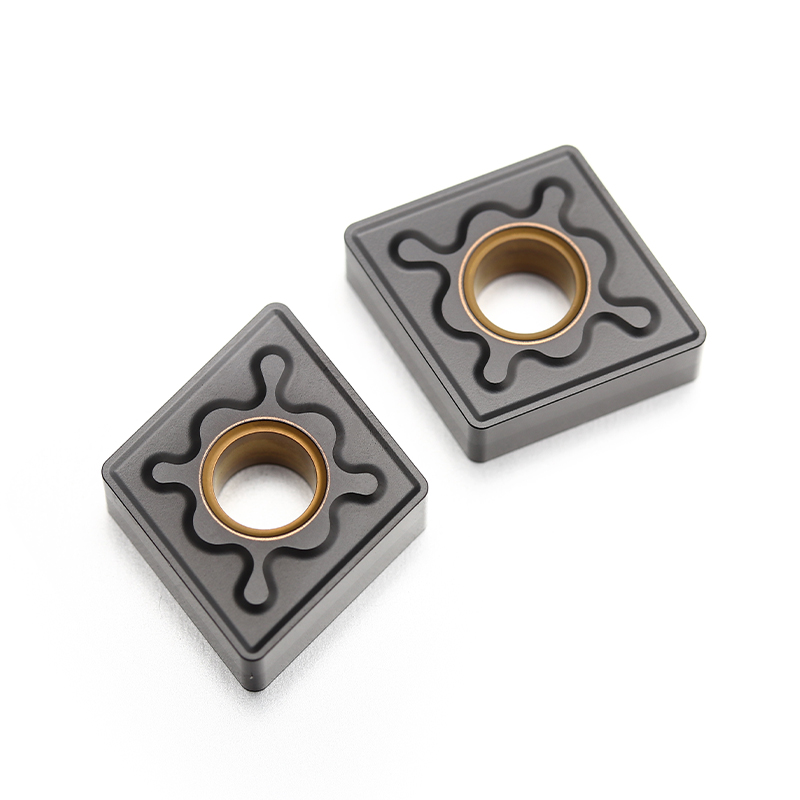

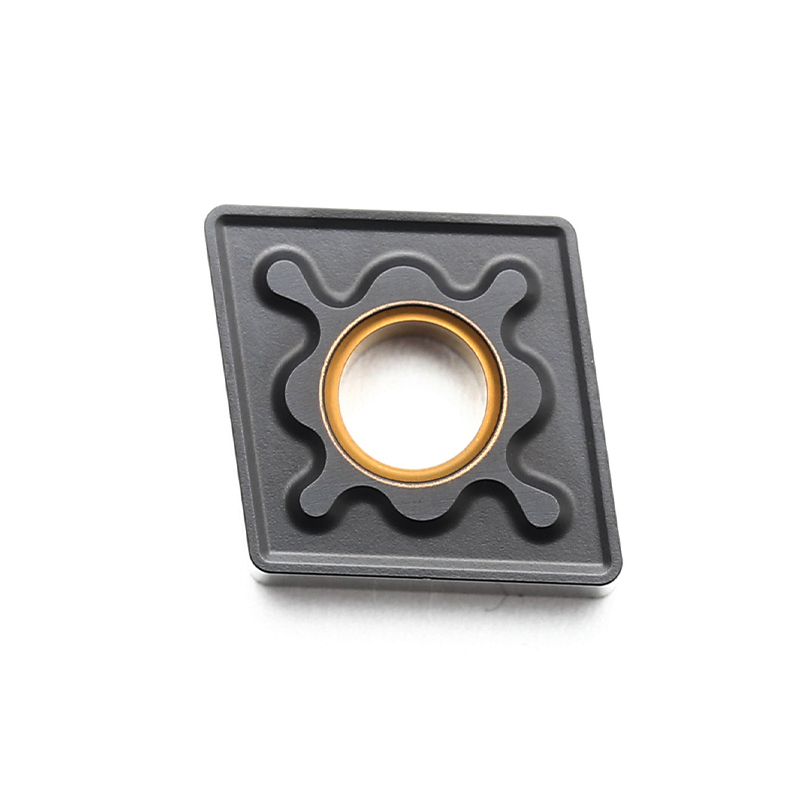

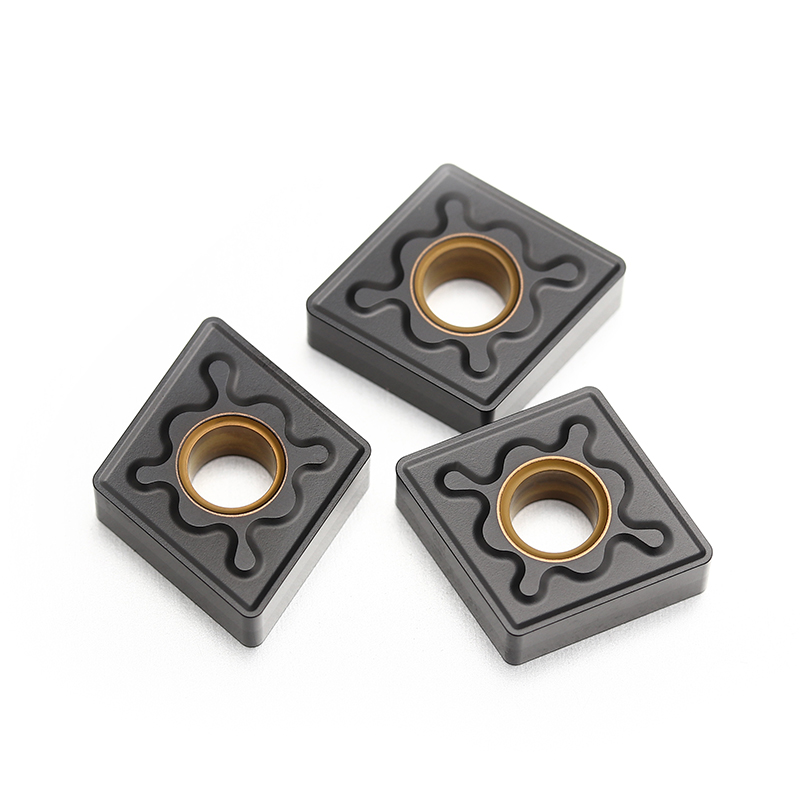

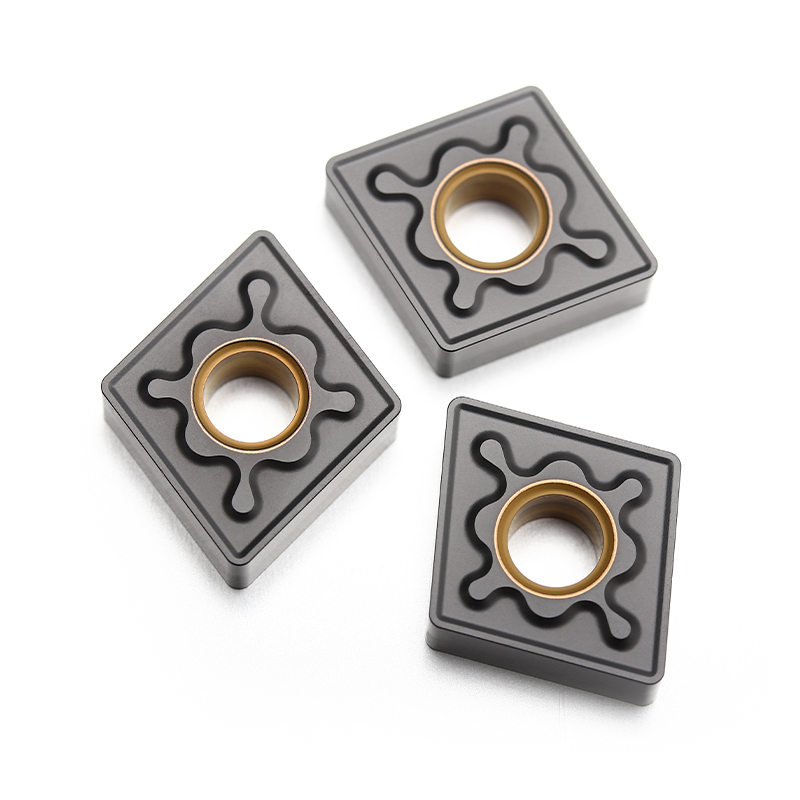

CNC ceramic carbide tools coated carbide inserts cNMG120404 f turning inserts for cast iron
CNC ceramic carbide tools coated carbide inserts cNMG120404 f turning inserts for cast iron
CNC ceramic carbide tools coated carbide inserts cNMG120404 f turning inserts for cast iron
CNC ceramic carbide tools coated carbide inserts cNMG120404 f turning inserts for cast iron
CNC ceramic carbide tools coated carbide inserts cNMG120404 f turning inserts for cast iron
CNC ceramic carbide tools coated carbide inserts cNMG120404 f turning inserts for cast iron
CNC ceramic carbide tools coated carbide inserts cNMG120404 f turning inserts for cast iron

CNC ceramic carbide tools coated carbide inserts cNMG120404 f turning inserts for cast iron

1. TM model is designed special for steel ;
2. DPM is for Semi-Finishing chip-breaker work for steel.
3. DMA special chip breaker designed to work for both steel and stainless steel
4. DGH Suitable for semi-finishing,excellent with interrupted cutting,margin and negative chamfer design ,good for high feed cutting on steel and cast iron

workpiece material

  • Cast iron

application type

  • Semi-Finishing

Chipbreaker

  • DGH (K-Semi finishing)

Coating

  • Chemical Vapour Deposition Coating

Grade

  • DH1210
  • DH1220
  • DH1120P
  • DH1220D

chipbreaker and grade Information

chipbreaker

 DMA special chip breaker designed to keep both sharp cutting edge

and good impact resistance ,which can efficiently avoid accumulate and suitable for semi-finishing ISO M and ISO P material.


Type of   processing  P   M   K    N     S
FinishingDPF/DTFDMF
AK
Semi finishingDPM/DPMK/TMDMM/DMADZT/GHBALH
RoughingDPR/DTRDTRFlat


Grade Information

1.General chip breaker,suitable for ISO M materials

2.  CVD coating : High Co  content and fine WC grain substrate ,gives wonderful cutting edge strength,combines with good thermal stability silicon coating ,it has very small coefficient of friction ,and good nano hardness


     P    Steel

   M  Stainless steel

  K    Cast Iron

  N

aluminum

   CVD  PVDCVDNon-Coating
P10P20P30P40M10M20M30K10K20K30N20
DH1210 DH1220D  DH1220  DH1230 DP3210 DP3220 DP3120 DO2110  DO2220  DO2120  AK10
DH4100 DH4200 DH4130


specification

SizeModelDH1110PDH1120PDH1210DH1220DP3120DP3220
 CNMG120404DMAP10 Gold YellowP20 Gold YellowP10 BlackP20 BlackM20 GreyM20/P20 Purple
CNMG120404TMP10 Gold YellowP10 Gold YellowP10 BlackP20 BlackM20 GreyM20 Grey
CNMG120404DPM\P10 Gold YellowP10 BlackP10 Black\\
CNMG160608DMAP10 Gold YellowP10 Gold YellowP10 BlackP20 BlackM20 GreyM20 Grey
CNMG160612TMP10 Gold YellowP10 Gold YellowP10 BlackP20 BlackM20 GreyM20 Grey
CNMG160608DPM\P10 Gold YellowP10 BlackP10 Black\\


advantage

未标题-1_0024_IMG_5899


CNMG1204 Model:

DPMK Negative insert chipbreaker,the special three-dimensional groove design of double rake angle and variable edge width makes

the cutting force small, the chip breaking range is wide, and the edge edge is sharper than epmk. Therefore,even when cutting

alloy steel with high viscosity, it can obtain good surface quality; it also has good performance in the case of uneven processing

of blank.


DTM Special chip breaker design to keep both sharp cutting edge and good impact resistance, which can efficiently avoid

accumulated and suited for semi-finishing ISO M stainless steel material.


.DMA special chip breaker designed to keep both sharp cutting edge and good impact resistance, which can efficiently avoid accumulating and suitable for semi-finishing ISO M and ISO P20-P30 steel  material.
