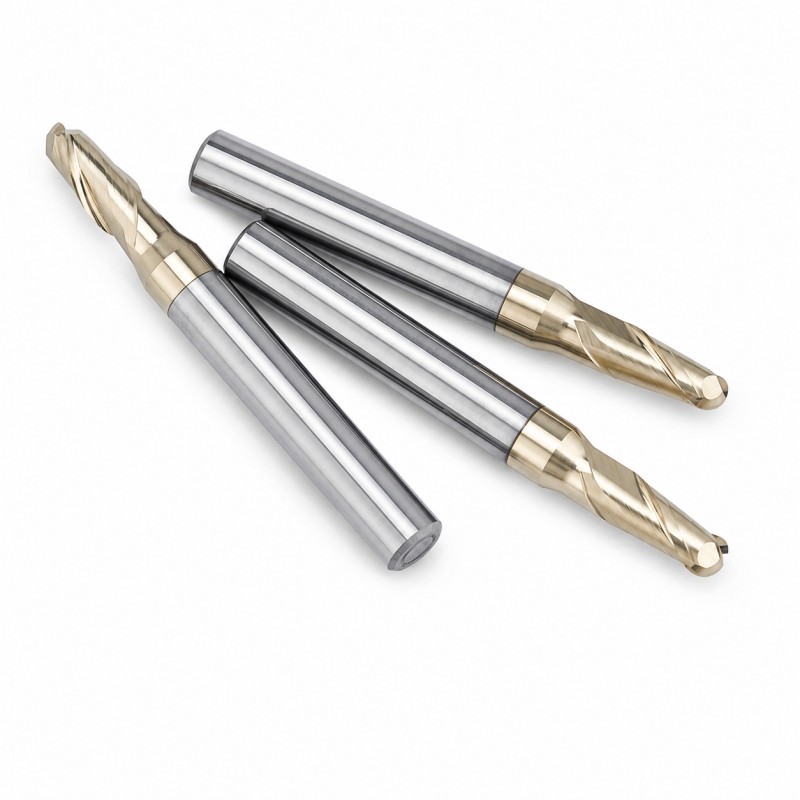

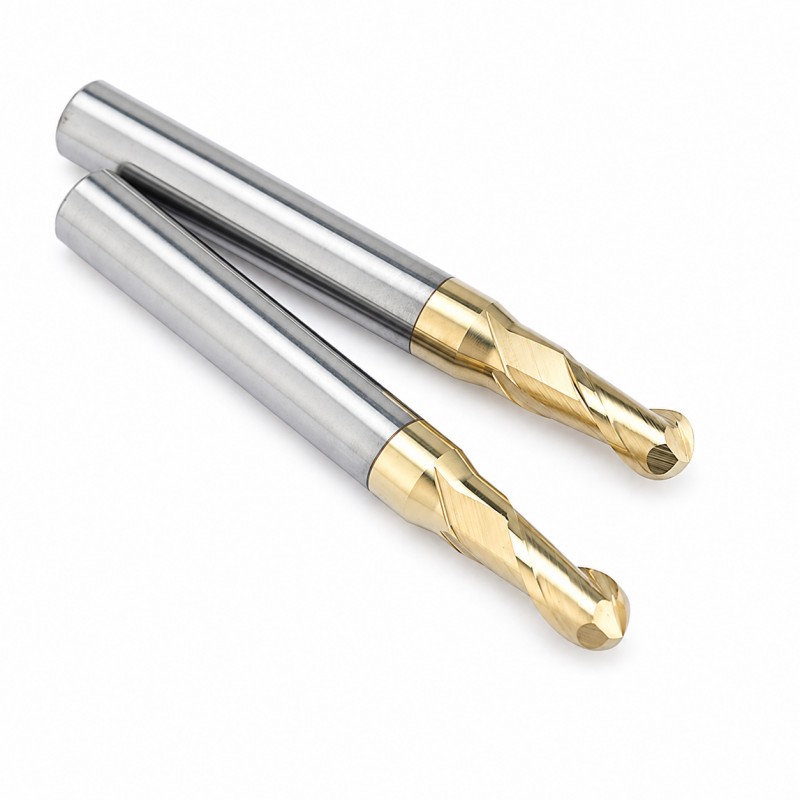

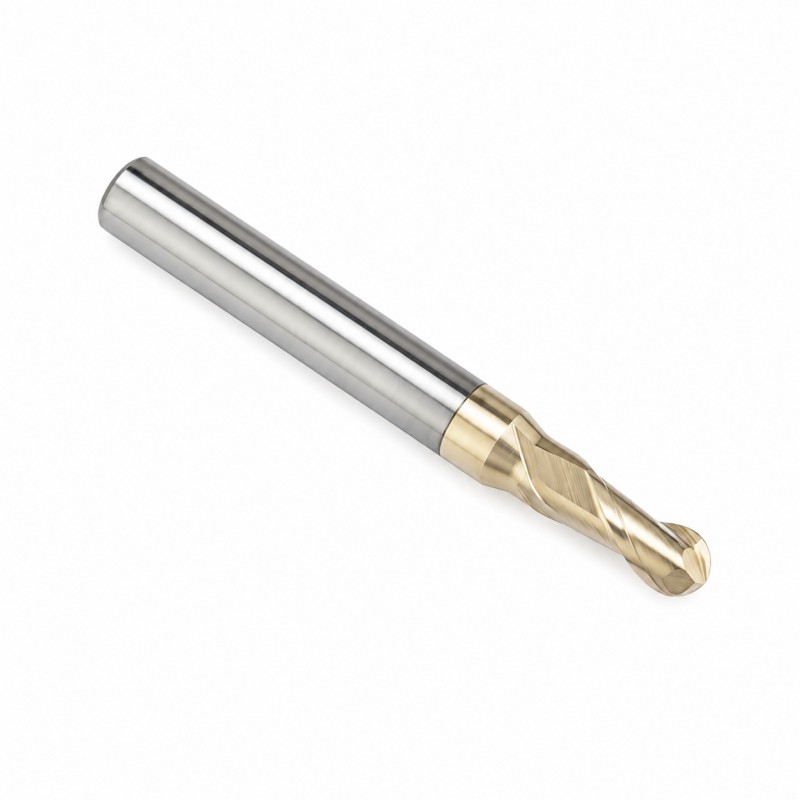

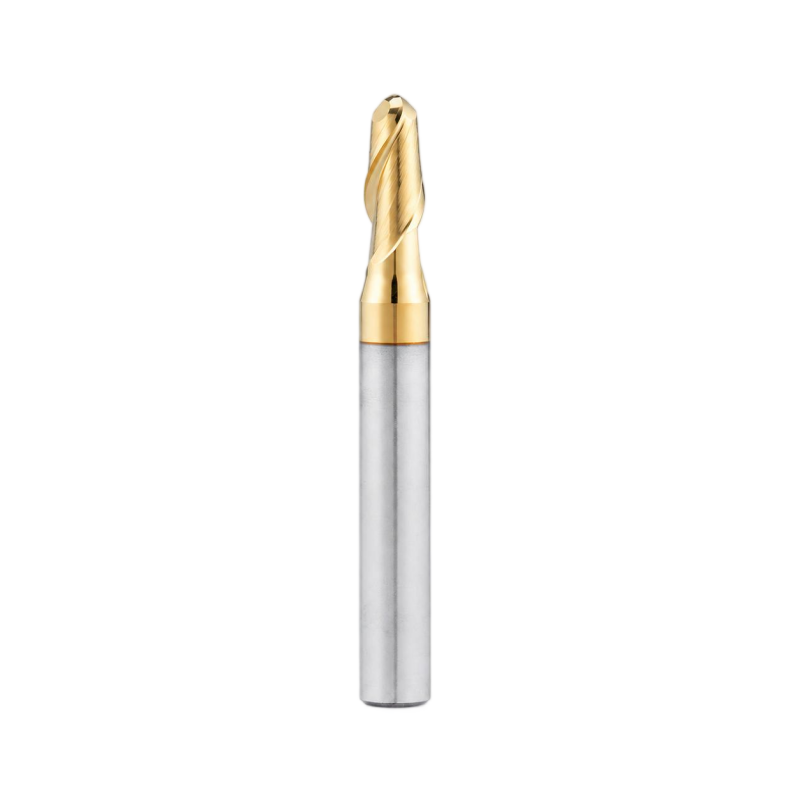

DEX Ball Nose End Mill For Titanium Alloy

DEX series ball nose end mills from Dohre CNC are specially developed for titanium alloy, aluminum-titanium alloy, stainless steel, alloy steel, mold steel, cast iron, carbon steel, and other difficult-to-machine materials within HRC25-60. With ultra-fine micro-grain carbide, advanced HSR118 coating, optimized flute geometry, and stable cutting performance, this tool is ideal for 3D contour machining, cavity profiling, curved surface semi-finishing, and finishing applications.

Compared with corner radius end mills, DEX ball nose end mills are better suited for complex curved surfaces, arc transition areas, cavity bottoms, and profile finishing where smooth cutting and surface consistency are required.

Ultra-Fine Micro-Grain Carbide Material

The cutter is made from ultra-fine micro-grain carbide with particle size below 0.6μm and 12% cobalt content. This material provides an excellent balance of hardness, toughness, and wear resistance, making it suitable for high-load cutting and stable machining of difficult materials.

HSR118 Coating for High-Temperature Machining

The DEX ball nose end mill uses HSR118 coating, benchmarked against JZR coating. It can withstand temperatures below 1200℃ and offers excellent red hardness, stable hardness retention at high temperature, and strong anti-sticking performance. This helps reduce built-up edge and improves cutting stability, especially when machining titanium alloy and other adhesive materials.

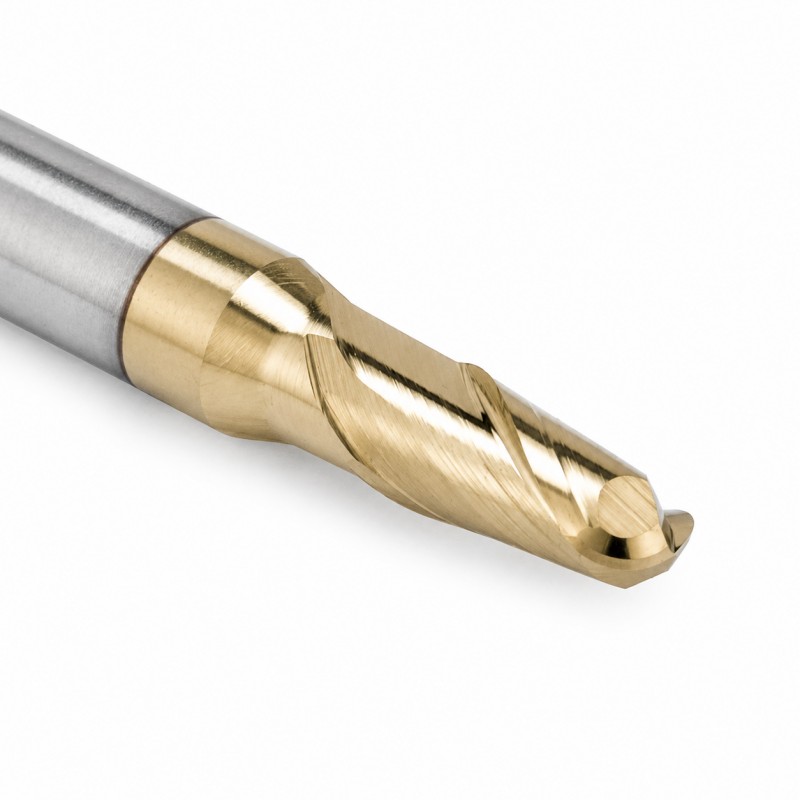

Optimized Geometry for Smooth Cutting

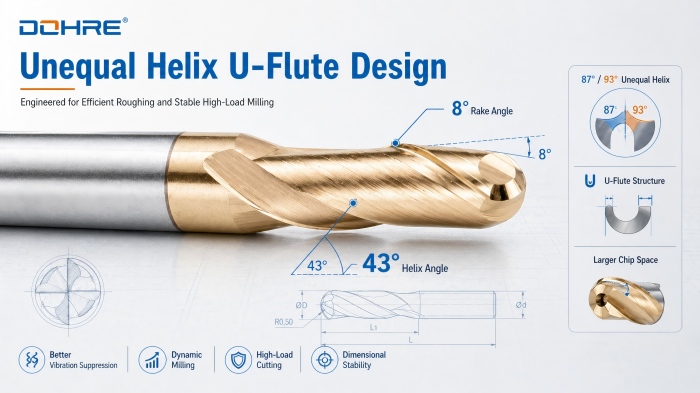

The tool adopts an arc-form flute design, 8° rake angle, and 43° helix angle to improve cutting smoothness and machining precision. This design helps reduce cutting resistance, improve chip flow, and maintain stable cutting action under demanding machining conditions.

Unequal Helix U-Shaped Flute Design

The 87°/93° unequal helix U-shaped flute design offers larger chip space and better vibration suppression. It is suitable for dynamic milling, high-load cutting, and efficient material removal while maintaining good dimensional stability.

Chip Breaker Groove for Better Cutting Force Control

The chip breaker groove design helps optimize cutting force, improve chip breaking performance, and increase machining efficiency. This is especially helpful in roughing and semi-roughing operations where cutting load control is important.

Applications and Machining Advantages

The DEX ball nose end mill is widely used for machining HRC25-60 materials, including:

• • Titanium alloy

• • Aluminum-titanium alloy

• • Non-ferrous metals

• • Carbon steel

• • Alloy steel

• • Mold steel

• • Stainless steel

• • Cast iron

Because of its ball nose design, this tool is especially suitable for:

• • 3D curved surface machining

• • Cavity profiling

• • Arc transition machining

• • Mold cavity semi-finishing and finishing

• • Contour milling

• • Complex surface machining of titanium alloy parts

In practical machining, the DEX ball nose end mill offers several advantages:

• • Smooth tool path on curved and contoured surfaces

• • Better surface consistency in semi-finishing and finishing

• • Stable cutting performance in difficult-to-machine materials

• • Good anti-sticking behavior on titanium alloy

• • Efficient chip evacuation in dynamic milling conditions

• • Reduced vibration through unequal helix flute design

• • Higher machining efficiency with chip breaker groove structure

For customers machining titanium alloy parts with complex profiles, this tool helps balance cutting efficiency, surface quality, and tool life.

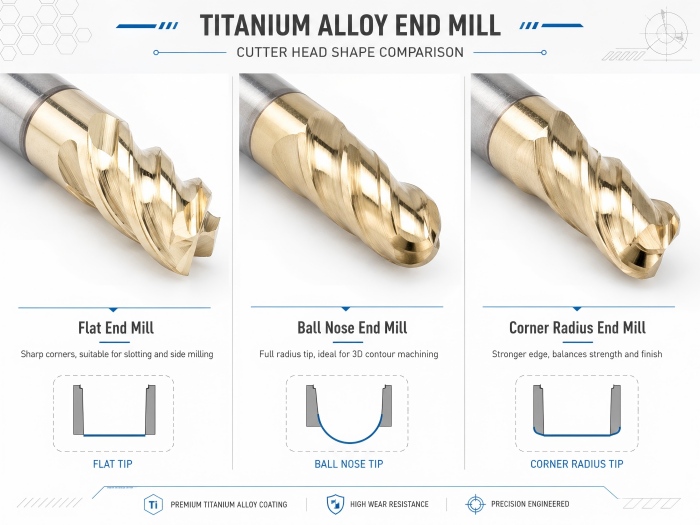

When machining titanium alloy and other difficult-to-machine materials, different tool geometries are designed for different machining tasks. Choosing the right end mill can help improve cutting stability, surface finish, and tool life. The following comparison can help customers quickly choose the right DEX series tool for their application.

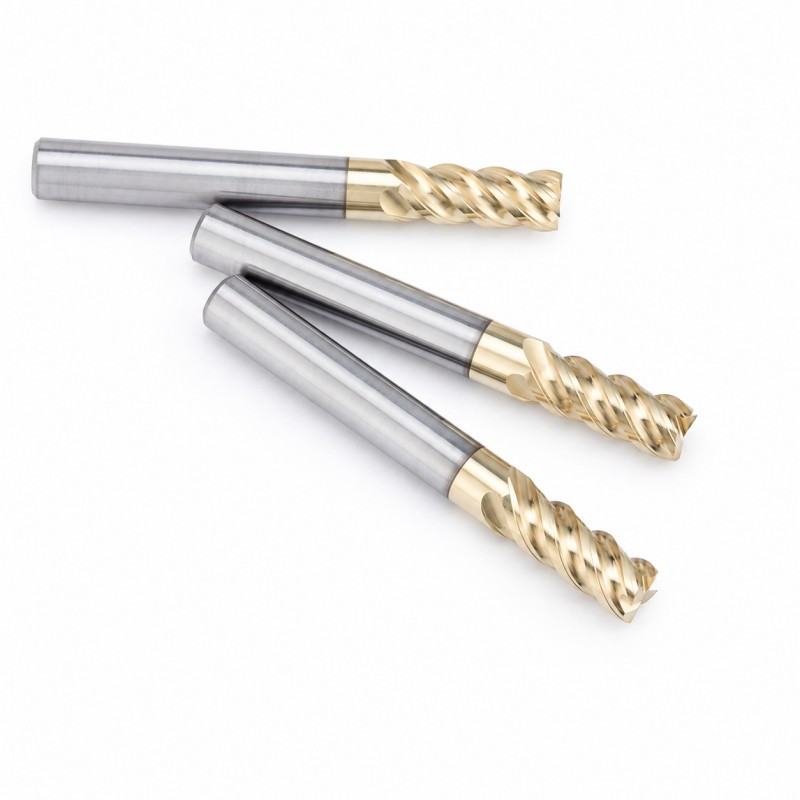

DEX flat end mills are more suitable for flat surfaces, side walls, step faces, and shoulder machining. They are a practical choice for general slotting, side milling, and finishing operations where a sharp corner is required.

DEX corner radius end mills are better suited for applications that require stronger edge protection and higher stability under load. Compared with flat end mills, the corner radius design helps reduce edge chipping and is often preferred for roughing, semi-finishing, dynamic milling, and high-load machining of titanium alloy and other difficult materials.

DEX ball nose end mills are the better choice for 3D curved surfaces, cavity profiling, arc transition areas, and contour finishing. Their geometry allows smoother tool paths and better surface consistency in complex shapes, making them especially suitable for semi-finishing and finishing of mold cavities and curved titanium alloy parts.

If your machining task focuses on planes and side walls, choose a DEX flat end mill. If you need higher edge strength and stable roughing performance, a DEX corner radius end mill is usually the better option. If the application involves complex contours, curved surfaces, and cavity profiles, a DEX ball nose end mill will be more suitable.

To ensure consistent performance of the DEX ball nose end mill for titanium alloy machining, every tool is produced under strict manufacturing and quality control processes.

Precision Grinding Process

Dohre DEX titanium alloy end mills are all manufactured on Walter 5-axis high precision grinding machines from Germany, ensuring:

•Accurate tool geometry and corner radius consistency

•Sharp and stable cutting edges

•Smooth cutting performance under high load conditions

Edge Preparation & Honing Technology

A fully automated edge preparation system is used, combining:

•Fluid blasting process to remove micro-burrs

•Rubber-bond diamond abrasive polishing for controlled edge honing

This process ensures uniform cutting edge quality, with the edge radius controlled within ±3 μm, improving tool life and machining stability when cutting titanium alloys.

Inspection & Quality Control

Each Dohre DEX series end mill is comprehensively inspected using advanced measuring equipment, including:

•Walter Helichek Plus from Germany for profile and geometry measurement

•150× optical measurement for dimensional accuracy

•300× high-definition visual inspection for surface and edge condition

Q1: What materials is the DEX ball nose end mill suitable for?

A1:It is mainly suitable for HRC25-60 materials such as titanium alloy, aluminum-titanium alloy, stainless steel, alloy steel, mold steel, cast iron, carbon steel, and non-ferrous metals.

Q2: What is the main advantage of a ball nose end mill?

A2: A ball nose end mill is especially suitable for 3D curved surfaces, contour machining, cavity profiling, and arc transition areas. It provides a smoother cutting path and better adapts to complex shapes.

Q3: Why is HSR118 coating important for titanium alloy machining?

A3: HSR118 coating offers strong red hardness, good hardness stability at high temperature, and excellent anti-sticking performance. This helps reduce chip adhesion and improves machining stability when cutting titanium alloy.

Q4: Is this tool suitable for roughing?

A4: Yes. Thanks to the unequal helix U-shaped flute design and chip breaker groove, it can support roughing and dynamic milling in suitable conditions. However, it is especially effective in semi-finishing and finishing of curved and contoured surfaces.

Q5: Can Dohre CNC provide customized DEX ball nose end mills?

A5: Yes. Dohre CNC can provide customized solutions based on tool diameter, flute length, overall length, geometry, and other machining requirements.
