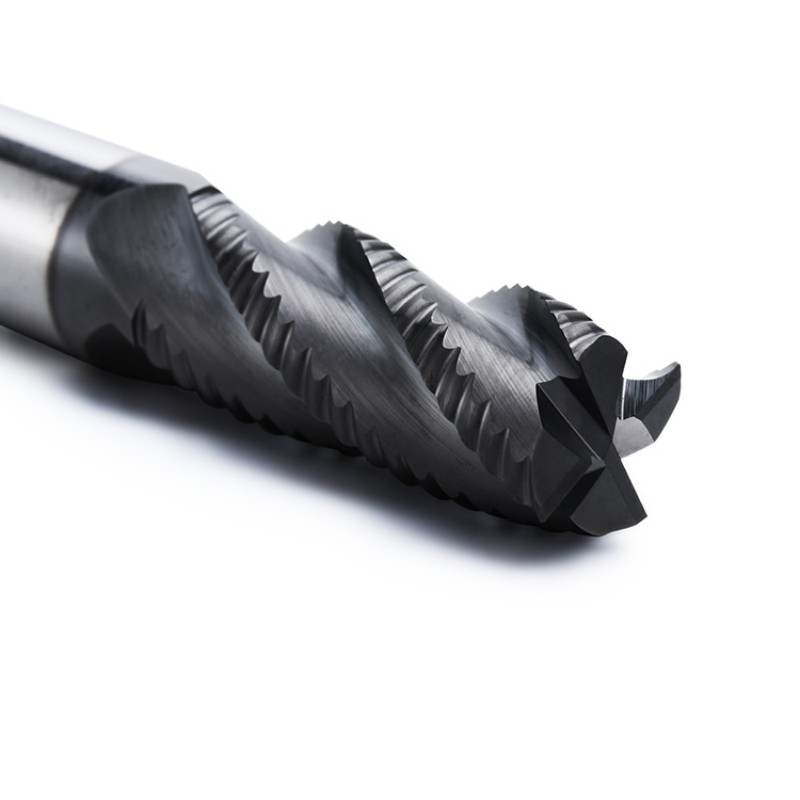

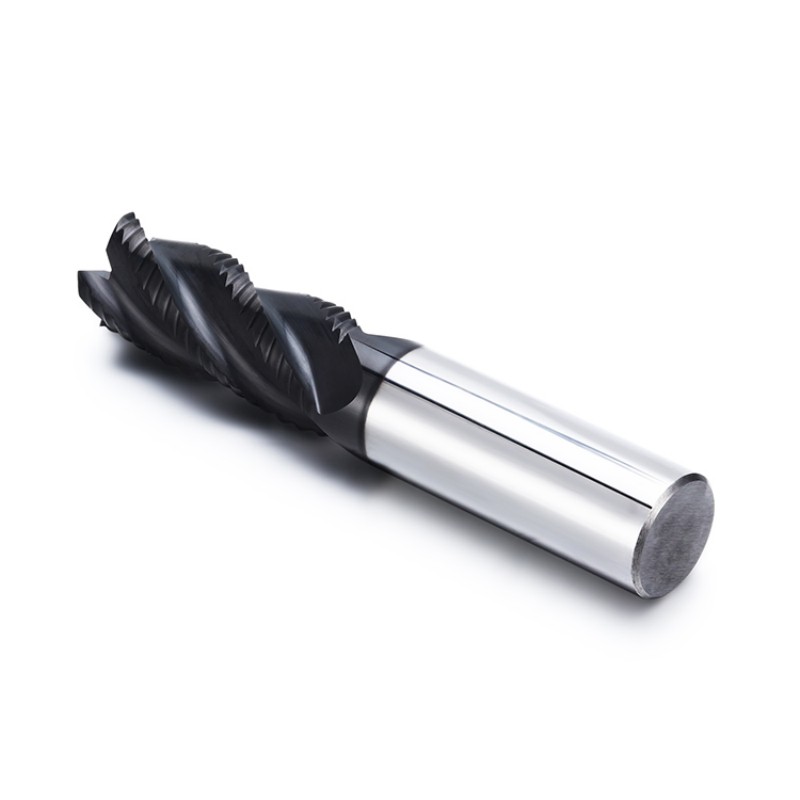

Roughing Square End Mills
 Roughing Square End Mills
 Roughing Square End Mills
 Roughing Square End Mills
 Roughing Square End Mills
 Roughing Square End Mills
 Roughing Square End Mills

Roughing Square End Mills

Tungsten Endmill- Economical Solutions
For rough and semi-finishing(±7 μm).

workpiece material

  • steel
  • stainless steel
  • cast iron
  • Nonferrous materials

application type

  • Semi-Finishing
  • Medium
  • Roughing

flute type

  • Square End Mill

Coating

  • Aluminum Titanium Nitride Coating
  • High Silicon Mixed Nano Coating

Product Description

Feature

•ENDMILL for rough machining and semi-finishing(±7 μm) of mold steel, components and materials with HRC20°-48° hardness.

•Easy to polish, high accuracy and concentricity high.

•A variety of flute lengths are available, and wide range of uses.

•Recommended oil mist cooling.

•Applicable machines: manual milling machines, CNC milling machines, CNC machining centers, engraving machines, high-speed machines, etc.


Specification

未标题-3(2)


TypeSpecificationFlute diaDFlute lengthShank diadOverall L
RoughingD6.0X15XD6X506.0 15650
D8.0X20XD8X608.0 20860
D10.0X25XD10X7510.0 251075
D12.0X30XD12X7512.0 301275
D16.0X40XD16X10016.0 4016100
D20.0X40XD20X10020.0 4020100
D6.0X15XD6X1006.0 156100
D8.0X20XD8X1008.0 208100
D10.0X25XD10X10010.0 2510100
D12.0X30XD12X10012.0 3012100


NOTE:

1. During using, appropriately reduce the cutting speed and feed rate, which can prolong the service life of the milling cutter.

2. When working, it is necessary to add cutting fluid to protect the knife edge, so that the cutting is smoother.

3. When the oxide film or other hardened layer remains on the surface of the workpiece, it can be removed by reverse milling.


Detailed Images




Details

•The arc relief angle makes the tool more wear-resistant, the flat relief angle makes the tool sharper and stronger, the cutting process is lighter and faster, and the tool life is longer under the double cooperation.

•Smooth chamfering, easy and fast installation of the chuck, high gloss surface.

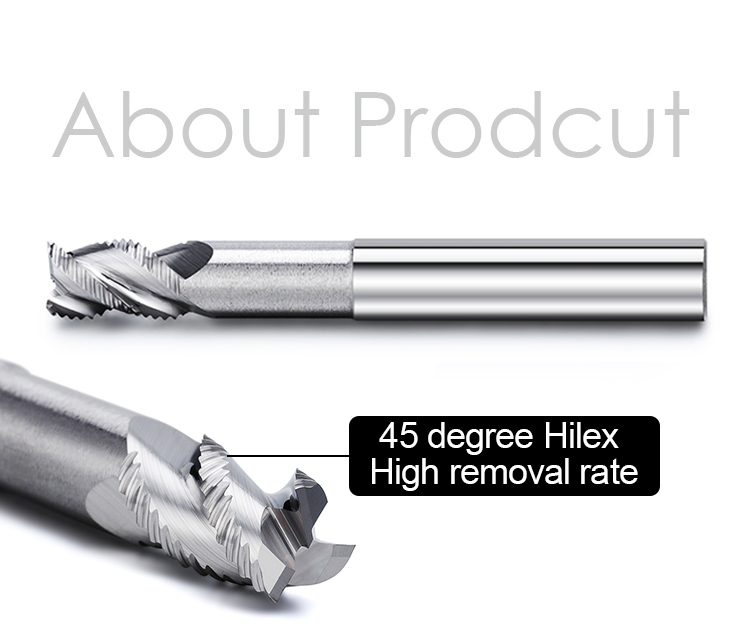

• Large chip removal design







AITIN-L application range:

•Suitable for the cutting of ordinary stainless steel, hardened stainless steel, ordinary die steel, hardened die steel, cast iron, copper and alloy steel with hardness below HRC45 degrees.


•The AL coating made with Japanese advanced technology and equipment contains high-component aluminum, which not only has high temperature oxidation resistance (800℃), but also can exert the best performance on processing tools under dry or high-speed conditions.


• Type: Deep groove milling cutter, ball end milling cutter, round nose milling cutter, can meet the finishing of your product surface quality.







AITIN-S application range:

•Suitable for high-efficiency cutting processing of ordinary steel, pre-hardened die steel cast iron, copper, alloy steel, ductile cast, and processing of materials with hardness below HRC48 degrees.


•The AS COATING coating made with Japanese advanced technology and equipment contains heat-resistant element silicon, which not only has high temperature oxidation resistance (1100°C), but also can exert the best performance on processing tools under dry or high-speed conditions.


• Types: End mills, ball end mills, round nose milling cutters, can meet the finishing of your product surface quality.
