6061 aluminum is widely used in CNC machining because of its good machinability and versatility, but choosing the wrong end mill can still cause burrs, poor surface finish, and unstable chip evacuation. This guide explains how to choose the best end mill for 6061 aluminum based on flute count, cutter type, chip flow, and real machining needs.
6061 aluminum is one of the most widely used aluminum alloys in CNC machining. It is common in automotive parts, electronic housings, mechanical components, fixtures, mold-related parts, and many general industrial applications.
Because 6061 offers a good balance of strength, machinability, and corrosion resistance, it is often selected for precision milling work. However, even though it is considered easier to machine than many steels, choosing the wrong cutter can still lead to burrs, chip packing, poor finish, and unstable cutting results.
If you are choosing an end mill for aluminum, it is useful to understand what makes a cutter suitable for 6061 aluminum specifically, not just for aluminum in general.
6061 aluminum is known for its good machinability, but tool choice still has a direct effect on cutting stability and surface quality. In practical machining, the material can still create continuous chips, especially during slotting, deeper cutting, and higher-speed operations.
If chip evacuation is not smooth or the cutting edge is not sharp enough, the cutter may start to push material instead of cutting it cleanly. That often leads to burr formation, unstable finish, and reduced tool life.
This is why the best end mill for 6061 aluminum is usually one that combines sharp edge geometry, smooth chip flow, and a cutter structure that matches the actual machining task.
When selecting a cutter for 6061 aluminum, several tool features matter in practice.
A sharp cutting edge helps the tool shear the material cleanly and reduce burrs. For 6061 aluminum, this is one of the most important conditions for stable cutting and clean sidewall quality.

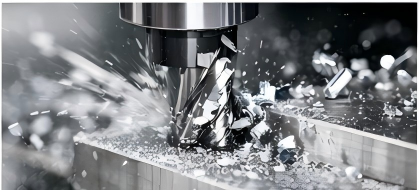

A good aluminum cutter should allow chips to leave the cutting zone quickly. This is especially important in slotting, roughing, and deeper groove machining.
A polished flute surface can improve chip flow and reduce material adhesion. This helps maintain cleaner cutting in aluminum applications.
The flute geometry should balance rigidity and chip evacuation. In many 6061 machining operations, a geometry designed for non-ferrous materials performs better than a general-purpose cutter.
Tool consistency also matters. If the edge quality and profile accuracy are unstable, batch machining results may vary from one cutter to another.
One of the most common questions in 6061 aluminum machining is whether to choose 2 flute or 3 flute tools.
2 flute end mills are often used when chip evacuation is the main concern. Because there is more flute space, they are commonly chosen for slotting, roughing, and deeper cutting conditions.
3 flute end mills are often selected when users want a better balance between productivity and finish quality. In many side milling and profile milling operations, they can perform very well on 6061 aluminum.
If smooth chip evacuation is the top priority, 2 flute is often the safer option. If the setup is stable and the goal is to improve efficiency while keeping good chip control, 3 flute can be a strong choice.
For a more detailed comparison, you can also read our guide on 2 flute vs 3 flute end mills for aluminum.
The best cutter type depends on the actual machining operation.
A square end mill for aluminum is usually the most common choice for 6061 aluminum. It is suitable for slotting, side milling, profile milling, and general CNC machining.
A ball nose end mill for aluminum is more suitable for 3D surfaces, curved profiles, cavity machining, and contour finishing.
A single flute end mill for aluminum can be useful when maximum chip evacuation is needed in high-speed or softer non-ferrous cutting conditions.
A high polished end mill for aluminum is often preferred when chip flow, cleaner cutting, and improved finish are especially important.
If your main question is whether to use a flat-end cutter or a rounded-end cutter, you can also read our guide on square end mill vs ball nose end mill for aluminum.
Even though 6061 is considered easy to machine, the wrong cutter can still create common machining issues.
If the edge is not sharp enough or the cutting condition is unstable, burrs may become more visible on the part.
When chips cannot evacuate smoothly, they may build up in the flute and affect finish quality and machining stability.
Poor finish can come from unsuitable flute count, poor chip flow, vibration, or a cutter geometry that does not match the application.
If tool consistency is not stable, different cutters may produce different cutting results in the same program.
If material adhesion is affecting finish quality or chip evacuation, you can also read our guide on why aluminum sticks to an end mill and how to reduce it.
When choosing the best end mill for 6061 aluminum, it is better to focus on the machining operation rather than only the product name.
• For slotting and roughing, chip evacuation is usually the first concern.
• For side milling and profile machining, a balance between efficiency and finish is often more important.
• For contour machining, the cutter tip shape becomes more important.
• For finish-sensitive parts, edge sharpness and flute smoothness matter a lot.
In many cases, yes. Cutter series designed specifically for non-ferrous machining usually offer sharper cutting edges, smoother flute surfaces, and geometry intended for more stable chip evacuation.
That is often a better match for 6061 aluminum than using a general-purpose cutter originally designed for broader materials.
The best end mill for 6061 aluminum depends on the machining purpose, flute options, cutter geometry, and chip evacuation performance. For many applications, square end mills remain the most common choice, while ball nose, single flute, and high polished tools can be better for specific machining tasks.
A good cutter for 6061 should provide sharp cutting, smooth chip flow, and stable performance across repeated machining operations. Rather than choosing only by appearance, it is better to match the tool to the actual cutting condition.
If you are comparing tooling solutions, exploring a complete End Mill for Aluminum range can help you find the right cutter for your machining process more efficiently.
What is the best end mill for 6061 aluminum?
The best choice depends on the operation. For many general machining tasks, a square end mill is the most common option, while ball nose, single flute, and high polished tools may be better for more specific applications.
Is 2 flute or 3 flute better for 6061 aluminum?
Both can work well. A 2 flute cutter is often preferred for chip evacuation, while a 3 flute cutter is often chosen for balancing cutting efficiency and finish quality.
Why does 6061 aluminum still produce burrs during machining?
Burrs may be caused by insufficient edge sharpness, unstable cutting conditions, poor chip evacuation, or a cutter geometry that does not match the operation.
Are polished flute end mills better for 6061 aluminum?
In many cases, yes. A polished flute surface can improve chip flow and help reduce material adhesion during cutting.
Can I use a general-purpose end mill for 6061 aluminum?
You can, but a cutter designed specifically for non-ferrous materials is often a better choice if you want cleaner cutting, smoother chip evacuation, and more stable machining performance.
