Ball Nose End Mill for Aluminum Machining | AEX Series

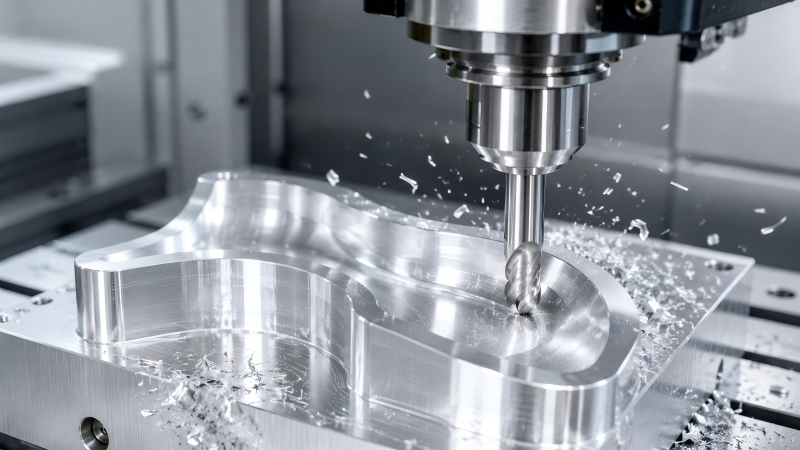

The AEX ball nose end mill for aluminum machining is designed for high-speed 3D contouring, curved surface finishing, profile milling, and mold cavity machining of aluminum and other non-ferrous materials.

Made from imported fine-grain carbide with 0.8 μm grain size and 10% cobalt content, this aluminum ball nose end mill provides stable edge strength, sharp cutting performance, and reliable wear resistance for continuous aluminum machining.

The tool adopts a sharp positive rake geometry, precision-ground cutting edge, 55% small-core design, and 45° helix angle. This helps reduce cutting resistance, improve chip evacuation, and achieve smoother surface finish in aluminum machining.

AEX is Dohre' s dedicated aluminum end mill series. For aluminum parts that require smooth curves, complex 3D profiles, and clean surface transitions, the AEX ball nose end mill provides a stable and practical solution.

Fine-Grain Carbide Material
The AEX ball nose end mill is produced from imported carbide rods with 0.8 μm grain size and 10% cobalt content. This carbide substrate provides a good balance of hardness, toughness, and wear resistance for aluminum and non-ferrous material machining.

Uncoated or DLC Rainbow Coating
The tool is available in uncoated and DLC Rainbow coated versions. The uncoated version provides a sharp cutting edge for smooth aluminum cutting, while the DLC Rainbow coated version helps reduce friction, improve anti-adhesion performance, and lower the risk of built-up edge. Aluminum adhesion is a common machining issue, and this topic is explained in more detail in our guide: Why Does Aluminum Stick to an End Mill?

Positive Rake Geometry
The tool adopts a 6° end rake angle and 12° side rake angle. This sharp cutting geometry helps reduce cutting resistance, improve cutting smoothness, and minimize burr formation during aluminum machining.

Precision-Ground Cutting Edge
The cutting edge is precision-ground with a 1200-grit grinding wheel to maintain edge sharpness. This helps reduce burrs, avoid uneven surface marks, and improve the final surface quality of aluminum parts.

55% Core Diameter and 45° Helix Angle
The tool uses a 55% small-core diameter and 45° helix angle. The smaller core provides larger chip space, while the high helix angle supports smoother chip evacuation and lower cutting resistance during high-speed aluminum cutting.

AEX ball nose end mills are suitable for aluminum and non-ferrous materials, including:

For 6061 aluminum machining, tool sharpness and chip evacuation are especially important. More selection details can be found in Best End Mill for 6061 Aluminum

For harder aluminum alloys such as 7075, coating selection, rigidity, and cutting parameters become more important. Related guide: Best End Mill for 7075 Aluminum

Typical applications include:

• 3D contour milling

• Curved surface finishing

• Profile milling

• Mold cavity machining

• Surface finishing of aluminum parts

• Multi-axis aluminum machining

• Semi-finishing and finishing of complex aluminum components

• Prototype aluminum part machining

• Aerospace, automotive, electronics, and mold applications

Different aluminum machining tasks require different tool geometries. AEX flat end mills and AEX ball nose end mills are designed for different cutting purposes.

For flat surfaces, slots, pockets, and straight side walls, an AEX flat or square end mill is usually more efficient.

For curved surfaces, 3D profiles, mold cavities, and complex aluminum contours, an AEX ball nose end mill provides smoother surface transitions and better finishing performance.

The difference between these two tool shapes is also explained in our aluminum machining guide: Square End Mill vs Ball Nose End Mill for Aluminum

Dohre CNC focuses on precision grinding, edge consistency, dimensional stability, and strict inspection for aluminum machining tools. AEX series end mills are produced under controlled manufacturing processes to support stable cutting performance and reliable batch quality.

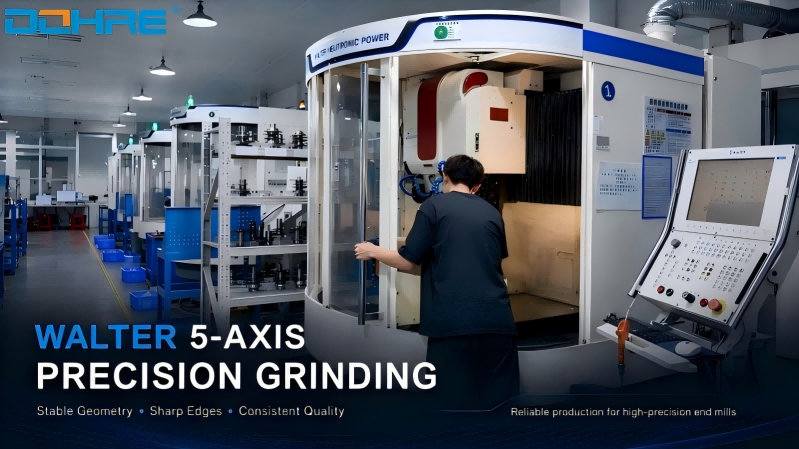

German Walter 5-Axis Grinding Machines

AEX series end mills are produced using German Walter 5-axis high-precision grinding machines. This helps maintain accurate flute geometry, stable dimensions, and consistent cutting edge quality.

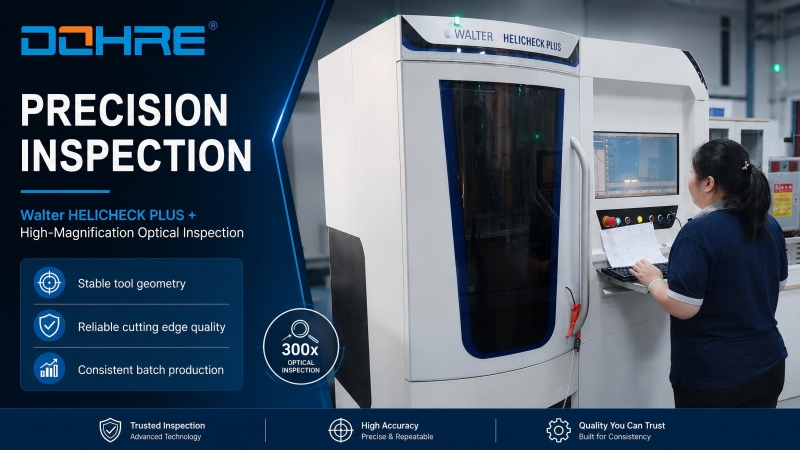

Walter HELICHECK PLUS Inspection

Tool profile and ball radius accuracy are inspected using German Walter HELICHECK PLUS measuring equipment. Profile and R accuracy can be controlled within 5 μm, helping ensure stable tool geometry and consistent machining accuracy.

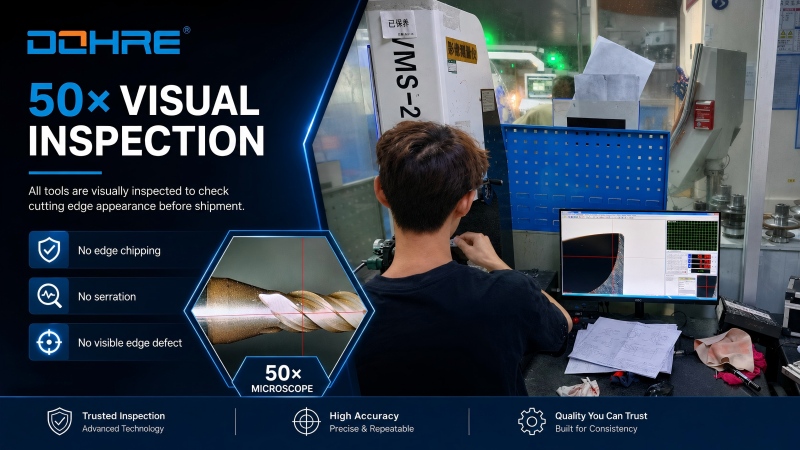

50× Microscope Inspection

All tools are visually inspected under a 50× microscope to check cutting edge appearance. This helps ensure there is no edge chipping, serration, or visible cutting edge defect before shipment.

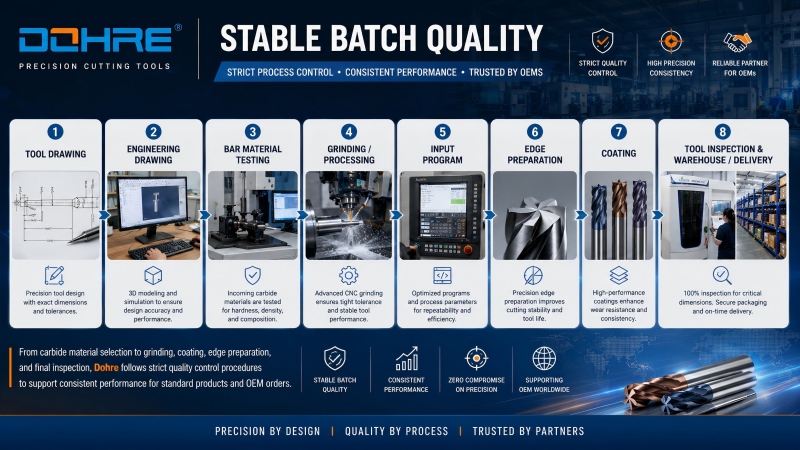

Stable Batch Quality

From carbide material selection to grinding, coating, edge inspection, and final quality control, Dohre follows strict production procedures to support consistent performance for standard products and OEM orders.

FAQ

Q1:What is the AEX ball nose end mill used for?
The AEX ball nose end mill is designed for aluminum machining, especially for 3D contouring, curved surface finishing, profile milling, mold cavity machining, and smooth surface finishing of aluminum parts.

Q2:Can this ball nose end mill machine 6061 aluminum?
Yes. It is suitable for 6000 series aluminum alloys, including 6061 aluminum. Sharp cutting geometry and smooth chip evacuation are important for reducing burrs and improving surface finish.

Q3:Can it be used for 7075 aluminum?
Yes. The AEX ball nose end mill can be used for 7000 series aluminum alloys, including 7075 aluminum. For harder aluminum alloys, proper coating selection, rigid tool holding, and suitable cutting parameters help improve tool life and cutting stability.

Q4:Should I choose uncoated or DLC Rainbow coating?
For general aluminum machining, the uncoated version provides a sharp cutting edge and low cutting resistance. For aluminum alloys that are easy to stick to the tool, DLC Rainbow coating can help reduce built-up edge, improve chip flow, and support better surface finish.

Q5:What is the difference between a flat end mill and a ball nose end mill for aluminum?
A flat end mill is better for flat surfaces, slots, pockets, shoulders, and side walls. A ball nose end mill is better for curved surfaces, 3D contours, complex profiles, and smooth surface finishing.

Q6:Can Dohre provide customized AEX ball nose end mills?
Yes. Dohre supports OEM customization for AEX aluminum end mills, including diameter, flute length, overall length, shank size, coating, ball radius, and special geometry requirements.

Contact Us

Need a Ball Nose End Mill for Aluminum Machining?

Contact Dohre for AEX Ball nose end mill selection, OEM customization, and quotation.
