stainless steel,under hrc55.
For semi-finishing&roughing(±5 μm).

workpiece material

  • Aluminum
  • Aluminum

application type

  • Semi-Finishing
  • medium
  • Roughing

flute type

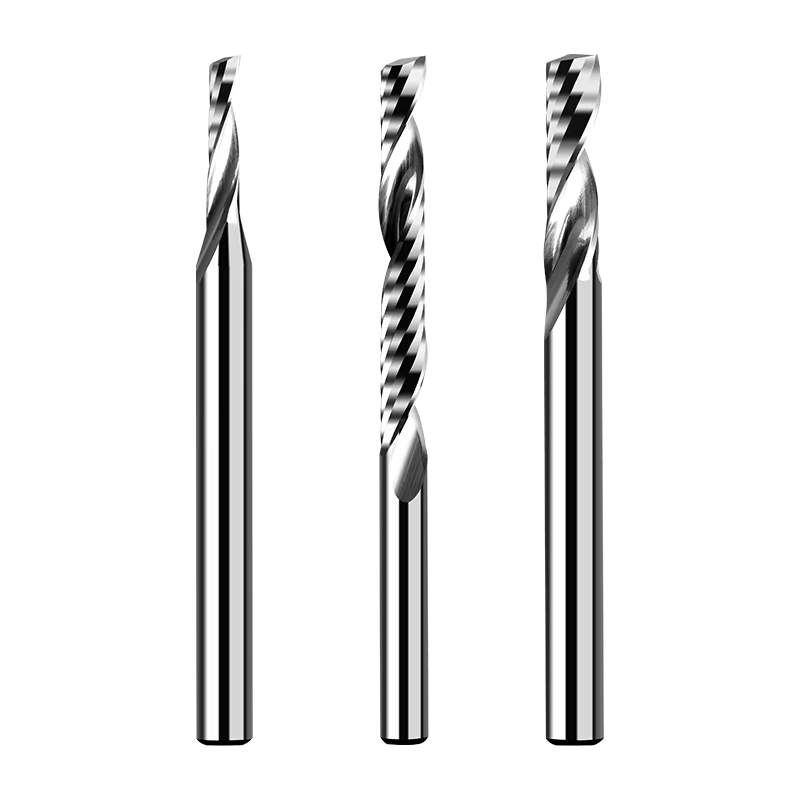

  • Single End Mill


  • diamon-like-carbon coating

Product Description


specificationFlute diameter(D)Flute length(H)Shank diameter(d)Overall Length(L)
D0.5X2XD4X50L0.5 2450
D1.0X3XD4X50L1.0 3450
D1.5X4XD4X50L1.5 4450
D2.0X5XD4X50L2.0 5450
D2.5X6XD4X50L2.5 6450
D3.0X7XD4X50L3.0 7450
D4.0X8XD4X50L4.0 8450
D5.0X10XD6X50L5.0 10650
D6.0X12XD6X50L6.0 12650
D8.0X16XD8X60L8.0 16860
D10.0X20XD10X75L10.0 201075

Detailed Images

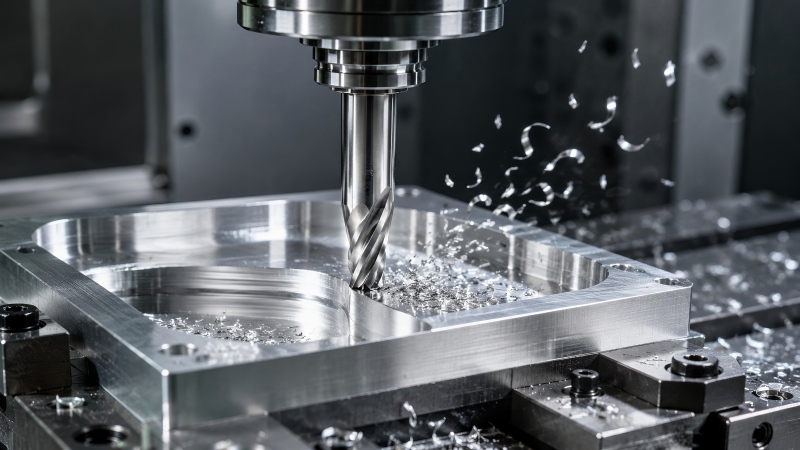

a.designed for Aluminum alloy,can work with acrylic, PVC, MDF, density board, wood and many other soft materials

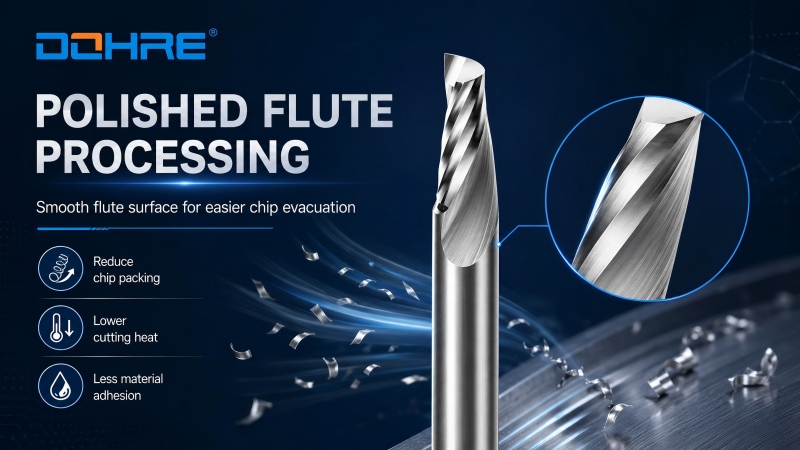

b.high precision grinded and polised,high abrasion resistance and temperature resistance ,good rigidity not to easy to break.
c.excellent combination of upper and lower blades
d.Sharp & Durable

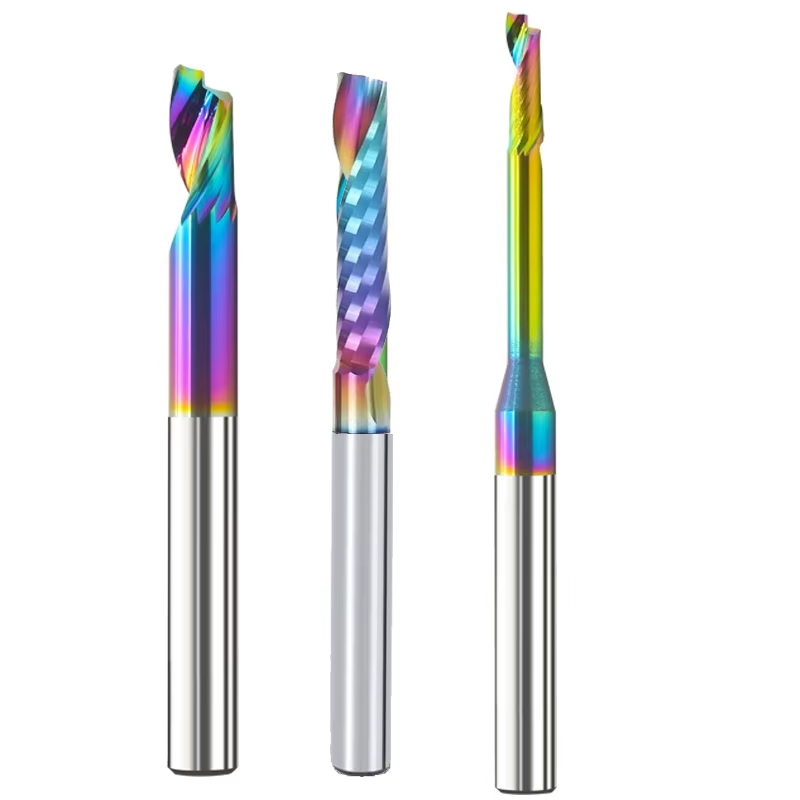

DLC:Suitable for processing aluminum parts


1.passivation technology before coating ,Fine Edge Treatment,its not easy to produce the built-up edge

Before passivation treament(133 times)
3after passivtion treament with brush(133 times)
45After  brush passivation treament + sandblasting polishing (133 times)

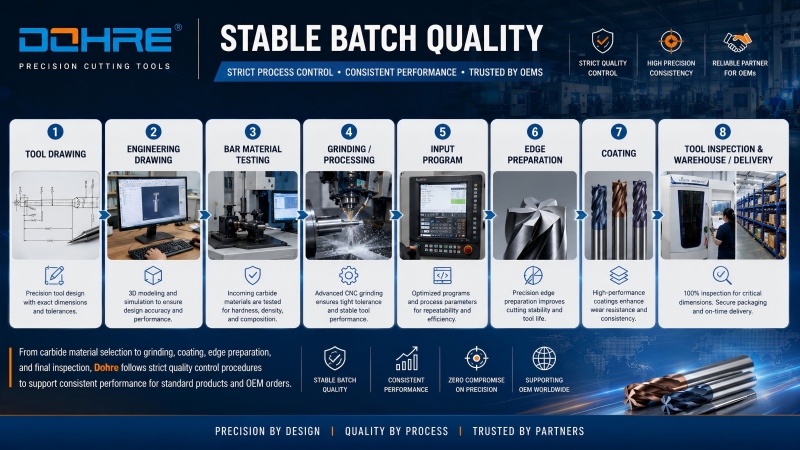

2.Four times of cutting tool detection to ensure the quality

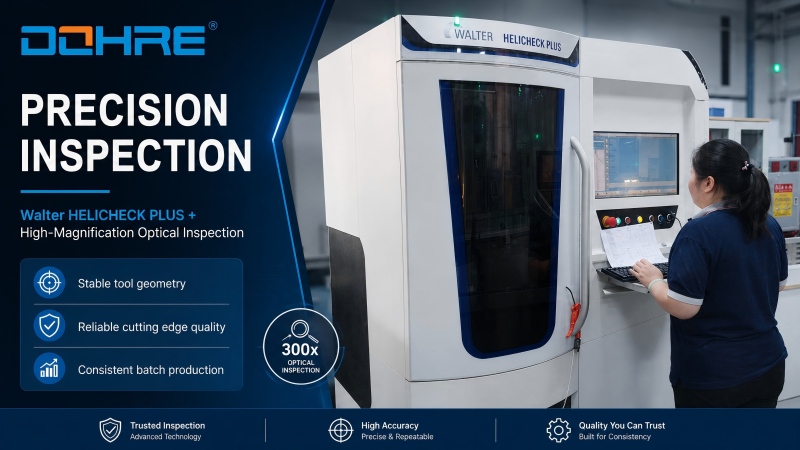

1) The first piece, the tail piece and the sampling inspection in the production process with Helicheck PlusWalter equipment to full inspection the Circumferential Rake, circumferential edge back Angle, end tooth front Angle, end tooth back Angle, R Angle value and profile, the profile of the forming knife

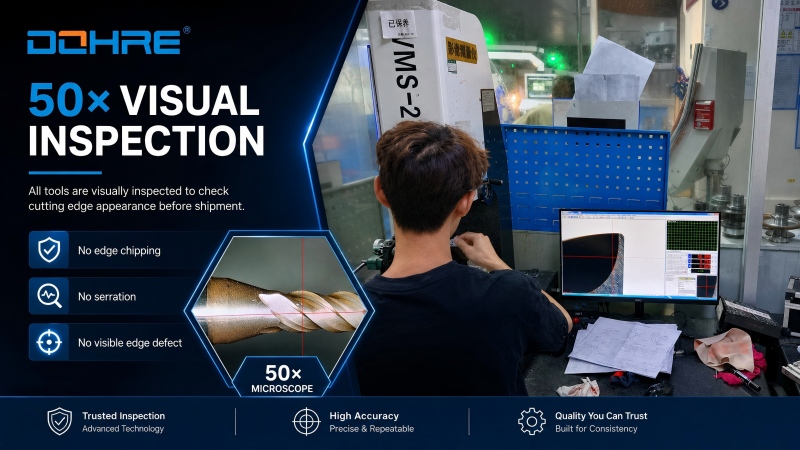

(2) after production , full inspection by two dimensions measuring instrument or Microscopic,flute number,outer diameter,flute length ,core diameter,helical angle,width of relief angle,End Tooth Eccentricity and end tooth throught a center,Disc angle of end tooth,Outside run-out and Whether there are notches, jagged
(3) before coating Spot check by two dimensions measuring instrument
(4)After coating full inspection by two dimensions measuring instrument

3.excellent R&D teams and professional technology support teams


IMG_6245 拷贝
1.piece in a plastic pipe ,10pieces per group and air bubble paper in a carton to reduce the shock.
未标题-12.Other package requests designed by customer will be accepted.

FAQ & Contact Us

Q: Are you trading company or manufacturer ?
A: Yes ,We are factory for more than 10 years in CNC tools.
Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
Q: Do you provide samples ? is it free or extra ?A: No, we don't provide samples, we we can offer you some discounts depends on your order quantity.
Q: What is your terms of payment ?A: T/T 30% deposit,70% balance against B/L copy or 100% irrevocable LC at sight. More payment terms available(Paypal, Western Union)
Q: Do you make OEM ?
A: Yes, we do. OEM is accepted with your brand lase in the products by our laser machine and label of the OEM brand would be stuck on the box before goods shipped out.

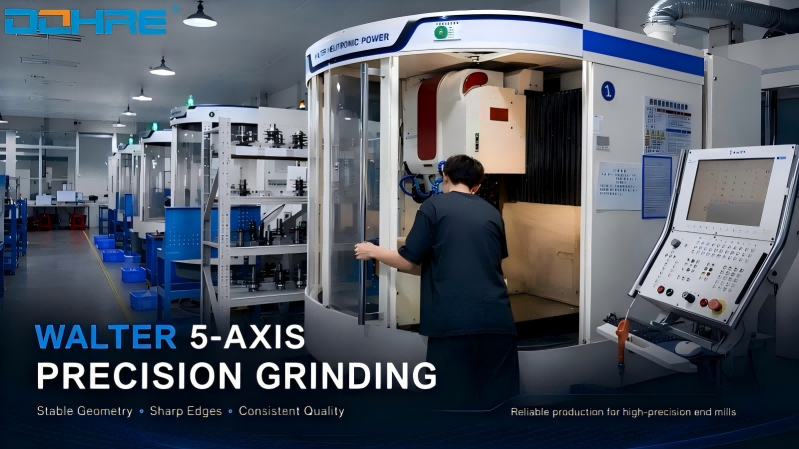

Q: What the machine do you adopt to produce the products ?A: We use the walter which imported from Germany.
