Micro-milling HRC50–60 mold steel requires a careful balance between tool rigidity, cutting-edge strength, wear resistance, chip evacuation, and feature access. This guide explains how to select the cutter diameter, flute count, cutting length, neck structure, coating, and machining strategy for small mold cavities, narrow slots, fine ribs, internal corners, and other precision features.
Mold components made from HRC50–60 steel often contain small internal corners, narrow slots, deep ribs, fine lettering, compact cavities, and precision transition surfaces. These features may require micro end mills that can enter restricted areas while maintaining dimensional accuracy and cutting-edge stability.
Selecting a micro end mill for this hardness range involves more than choosing a small diameter. The cutter must also match the actual mold-steel grade, heat-treatment condition, feature depth, corner radius, required reach, machining stage, tolerance, and surface-finish requirement.
A cutter that is too small, too long, or installed with excessive runout may fail even when conservative cutting parameters are used. A stable process begins by selecting the correct tool structure before adjusting spindle speed, feed rate, and cutting depth.
For a general explanation of cutter diameter, flute length, neck length, holder overhang, and runout, see our guide on how to choose a micro end mill.
As mold-steel hardness increases, the cutter must resist higher cutting pressure, abrasive wear, heat, and repeated loading at the cutting edge. At the same time, reducing the end mill diameter decreases the size of the tool core and its resistance to bending.
The combination of a small cutter and relatively hard material creates several machining challenges:
•The cutting edge can wear or micro-chip before the damage is visible.
•A small amount of runout can overload one flute.
•Long flute or neck sections can deflect under radial cutting force.
•Deep narrow features restrict chip evacuation.
•Sudden corner engagement can create a sharp increase in tool load.
•Tool wear can change the slot width, wall position, and surface finish.
•Excessive cutting heat can accelerate coating and edge damage.
These factors should be considered together. Reducing the feed alone will not solve a problem caused by excessive runout, poor toolholding, an unnecessarily long neck, or chip packing inside a deep feature.

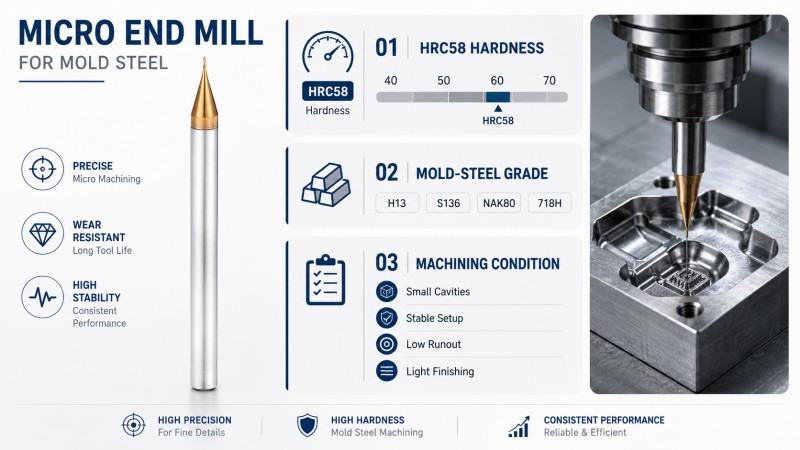

Customers searching for an “HRC58 micro end mill” have already identified an important machining condition, but hardness alone is not enough to determine the correct cutter.
Two workpieces with the same measured hardness may have different alloy compositions, carbide distributions, heat-treatment conditions, residual stresses, and machining behavior. The tool recommendation can also change according to whether the operation is roughing, semi-finishing, sidewall finishing, corner cleaning, or three-dimensional contour machining.
Before selecting the cutter, confirm:
•The mold-steel grade.
•The measured hardness rather than only the nominal specification.
•The heat-treatment and supplied condition.
•Whether the cutting is continuous or interrupted.
•The amount of material the micro tool must remove.
•The required dimensional tolerance and surface finish.
•Whether the feature contains a deep wall, narrow slot, small radius, or recessed detail.
For suitable applications within this hardness range, Dohre UEX mold steel end mills for materials up to HRC60 can be considered. The final micro-tool diameter, reach, flute structure, and coating should still be confirmed according to the component drawing and actual machining conditions.
The smallest feature normally determines the cutter diameter, while the deepest obstruction determines the required reach. These are different dimensions and should be evaluated separately.
| Feature Information | Why It Matters | Tool Selection Effect |
|---|---|---|
| Minimum slot width | Limits the maximum cutter diameter | Use the largest diameter compatible with the slot and finishing strategy |
| Internal corner radius | Determines whether a smaller finishing tool is required | Reserve the micro tool for the remaining corner material |
| Active cutting depth | Determines the flute length required to cut material | Avoid using a flute much longer than the actual cutting depth |
| Clearance depth | Determines whether a reduced neck is required | Select only the neck length needed to avoid interference |
| Required tolerance | Controls acceptable deflection, runout, and wear | May require separate semi-finishing and finishing tools |
| Surface requirement | Affects tool shape, finishing allowance, and step-over | Choose square, corner radius, or ball nose geometry accordingly |

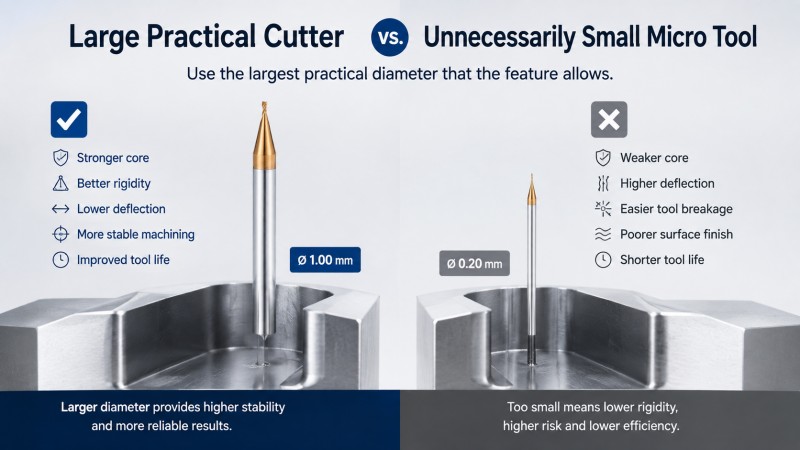

Use the largest practical cutter diameter that can produce the required mold feature. A smaller tool is not automatically more precise.
Increasing the cutter diameter generally provides:
•A stronger carbide core.
•Greater resistance to tool deflection.
•Better support behind the cutting edge.
•More available flute space.
•Lower sensitivity to the same amount of runout.
When the small diameter is required only for a corner or rib, remove the main cavity material with a larger and more rigid cutter. Leave a controlled amount of material for the micro end mill to finish.
Using the micro tool only where its diameter is necessary reduces machining time, chip volume, continuous tool engagement, and breakage risk.
When the cutter diameter equals the final slot width, both walls are machined simultaneously. The slot size then becomes sensitive to cutter diameter, runout, tool deflection, wear, and spindle movement.
Where the feature provides enough space, a slightly smaller cutter may open the slot before separate wall-finishing passes establish the final width. The toolpath must still avoid sudden full engagement in the corners.
Square end mills are used for narrow slots, flat-bottom cavities, shoulders, steps, ribs, and vertical sidewalls. The sharp tool corner creates a defined workpiece corner but also concentrates cutting load at the weakest part of the cutter.
Inspect the tool corner carefully when machining interrupted features or entering areas with rapidly increasing radial engagement.
A corner radius distributes the cutting load over a curved edge and can provide stronger corner support. It may be suitable for mold cavity transitions, sidewalls, shoulders, and semi-finishing or finishing operations where the drawing permits an internal radius.
The radius must match the mold design. A larger tool radius improves cutter strength but also creates a larger internal workpiece radius.
Ball nose micro end mills are commonly used for three-dimensional surfaces, curved cavity bottoms, small fillets, fine mold contours, and finishing near recessed details.
The effective cutting speed changes across the ball profile. Surface finish depends on tool diameter, step-over, contact position, runout, toolpath direction, and edge condition.
Flute count affects the available chip space, carbide core, number of cutting edges, and frequency of edge contact. No single flute count is suitable for every HRC50–60 mold-steel operation.
| Flute Count | Typical Advantage | Selection Consideration |
|---|---|---|
| 2 flutes | More flute space and potentially lower cutting resistance in suitable designs | Can be considered for small features where chip evacuation and light engagement are priorities |
| 4 flutes | More cutting edges and greater core support in suitable geometries | Can suit sidewall finishing and controlled radial cutting where chip space remains sufficient |
Flute count should be selected together with cutter diameter, flute geometry, radial engagement, machining depth, spindle capability, chip size, and evacuation method.
A four-flute tool is not automatically better because it has more cutting edges. In a narrow deep slot, reduced flute space can make chip evacuation more difficult. Likewise, a two-flute tool is not automatically suitable for every hard-steel operation if the edge support or coating does not match the material.
Micro end mills for mold components often require additional reach, but flute length and neck length perform different functions.
•Flute length is the active cutting section.
•Neck length is the reduced-diameter clearance section behind the flute.
•Tool overhang is the complete unsupported distance from the holder to the cutting tip.
A deep cavity does not always require a long flute. If only the bottom corner or local detail must be machined, a short flute with a reduced neck may provide the required access without extending the active cutting edge through the complete depth.
If the complete tall wall must be cut, a longer flute may be necessary. The radial cutting engagement should then reflect the lower rigidity of the extended cutting section.
Our comparison of long-neck and long-flute micro end mills explains how to separate active cutting depth from required clearance depth.
| Mold Feature | Recommended Starting Structure |
|---|---|
| Shallow narrow slot | Short-flute tool with minimum practical overhang |
| Deep cavity bottom | Short flute with reduced neck |
| Tall wall requiring full axial cutting | Flute length matched to the active wall height |
| Fine mold rib | Micro tool with controlled neck diameter and only the required reach |
| Feature below a shoulder | Reduced-neck tool with verified shank clearance |
Micro-milling HRC50–60 mold steel requires a cutter that balances wear resistance with cutting-edge stability. Selecting a tool only by coating color or hardness range is not sufficient.
The complete cutting system includes:
•Carbide grain structure and toughness.
•Tool core diameter.
•Rake and relief geometry.
•Corner form and edge preparation.
•Flute shape and chip space.
•Coating wear resistance and thermal stability.
•Flute length, neck dimensions, and actual holder overhang.
An extremely sharp but weak edge may chip in hard mold steel, while an excessively reinforced edge can increase cutting resistance on a very small tool. The edge geometry should provide enough support without creating unnecessary force.
Runout causes the cutting edges to rotate at different effective radii. One flute may remove most of the material while another flute removes very little or rubs against the surface.
In HRC58 mold steel, unequal flute loading can quickly increase local wear and micro-chipping. Possible results include:
•Premature edge wear on one flute.
•Oversized slots or internal features.
•Unequal sidewall finish.
•Burrs concentrated on one edge.
•Chipping at the tool corner.
•Unexpected cutter breakage.
Runout should be measured as close to the cutting edge as the measurement method permits. Clean the spindle interface, holder, collet, and tool shank before clamping the cutter, and keep the actual tool extension as short as the mold feature allows.

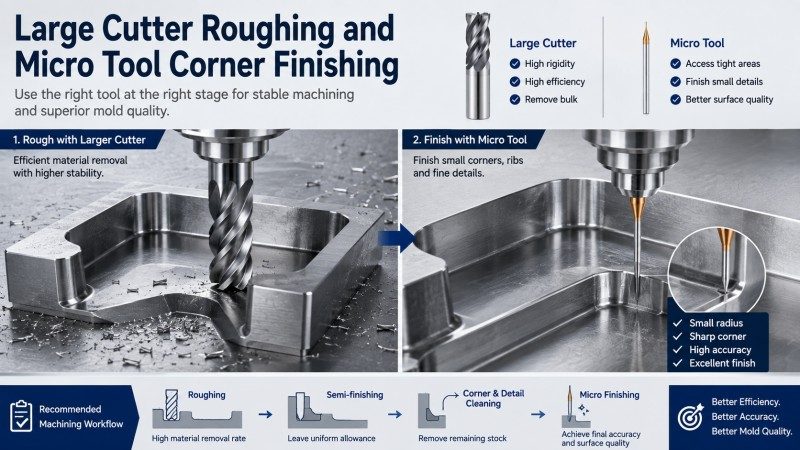

Micro end mills should not remove more material than the mold geometry requires. The main cavity should normally be opened with a larger cutter wherever access permits.
A practical machining sequence may include:
1.Rough the main cavity with a larger cutter. Remove most of the material with better rigidity and chip space.
2.Use semi-finishing to leave uniform stock. Avoid leaving isolated heavy material in internal corners.
3.Remove residual corner material progressively. Do not force the micro tool directly into a large remaining corner.
4.Finish critical walls and radii with a predictable edge condition. Replace the tool before wear becomes unstable.
5.Clear chips before the final pass. Prevent roughing chips from being dragged across precision surfaces.
This process reduces the material-removal load placed on the smallest cutter and helps control sudden engagement near internal mold corners.
A tool following a straight wall can experience a sudden increase in radial engagement when it enters an internal corner. This may occur even when the programmed feed remains unchanged.
For a micro end mill in HRC50–60 mold steel, the load increase can cause:
•Tool deflection.
•Corner chipping.
•Vibration marks.
•An oversized local radius.
•Sudden cutter failure.
Remove corner material progressively and avoid forcing the tool into a sharp transition with immediate full engagement. The toolpath should maintain a more consistent cutting load wherever the mold geometry permits.
Deep ribs and narrow slots provide little space for chips to leave the cutting area. Trapped chips can be recut, pressed against the flute, or dragged across the finished surface.
Poor evacuation may cause:
•Unexpected increases in cutting force.
•Flute blockage.
•Surface scratches and secondary cutting marks.
•Higher local temperature.
•Edge chipping or breakage.
Select sufficient flute space, control axial engagement, and direct air or coolant toward the cutting zone. Chips should be cleared between progressive-depth passes and before precision finishing begins.
An excessive feed or cutting depth can overload the micro tool directly. However, continuously reducing the feed is not always the correct solution.
When the effective chip thickness becomes too low, the cutting edge may rub or push the material instead of forming a stable chip. Rubbing increases heat and wear, gradually raising the cutting force until the edge chips or the cutter fails.
Cutting conditions should be evaluated together with:
•Actual cutter diameter.
•Number of flutes.
•Measured runout.
•Axial and radial engagement.
•Flute and neck length.
•Tool overhang.
•Mold-steel grade and hardness.
•Chip evacuation and coolant conditions.
| Observed Problem | Possible Cause | What to Check |
|---|---|---|
| Micro-chipping at the tool corner | High local engagement, runout, weak corner support, or interrupted cutting | Tool shape, corner entry, coating, edge condition, and runout |
| Tool breaks inside a deep feature | Chip packing, excessive neck length, long overhang, or sudden engagement | Evacuation, working reach, holder position, and toolpath |
| Deep wall becomes tapered | Tool deflection caused by excessive flute length or radial load | Tool structure, finishing allowance, cutting direction, and overhang |
| Slot becomes oversized | Runout, tool deflection, wear, or unstable full-width cutting | Effective cutting diameter, holder condition, and finishing strategy |
| Surface finish becomes worse after several parts | Progressive edge wear, coating damage, vibration, or chip recutting | Tool-life standard, edge condition, evacuation, and finishing stock |
| Tool wears rapidly | Unsuitable substrate, coating, geometry, cutting load, or excessive rubbing | Material hardness, tool specification, chip formation, and cutting conditions |
More detailed troubleshooting for runout, chip packing, unstable entry, and excessive overhang is available in Why Do Micro End Mills Break?
Standard micro end mills can machine many mold features, but catalog dimensions may not provide the correct combination of diameter, flute length, neck length, neck diameter, corner radius, and holder clearance.
A custom cutter may be considered when the mold contains:
•A non-standard narrow slot.
•A special micro cutting diameter.
•A short flute combined with a specific long neck.
•A restricted neck-clearance requirement.
•A special corner radius or ball profile.
•A deep rib that standard tools cannot reach without excessive overhang.
•A stepped or combined mold profile.
•A material requiring application-specific geometry or coating.
Dohre provides custom and non-standard end mills according to the mold drawing, material, hardness, cutting diameter, flute length, neck length, corner requirement, tolerance, and machine conditions.
1. Confirm the mold-steel grade and hardness. Do not select the cutter only from the HRC value.
2. Identify the smallest required feature. Confirm the slot width, corner radius, rib thickness, and local profile.
3. Select the largest practical cutter diameter. Avoid reducing the diameter without a geometric reason.
4. Choose the cutter shape. Match square, corner radius, or ball nose geometry to the mold feature.
5. Determine the active cutting depth. Select only the flute length that must cut material.
6. Determine the required clearance depth. Use a reduced neck only where surrounding geometry requires it.
7. Minimize actual tool overhang. Clamp the tool as deeply as the holder and feature permit.
8. Select the flute count and cutting geometry. Balance chip space, core support, cutting resistance, and edge strength.
9. Match the substrate and coating to the material. Consider wear resistance, thermal stability, and resistance to chipping.
10. Measure runout near the cutting edge. Check the complete toolholding system after clamping.
11. Rough with a larger cutter. Reserve the micro end mill for restricted areas and final details.
12. Inspect the first machined features. Check slot width, wall taper, corner radius, surface quality, and tool condition.
What micro end mill should be used for HRC58 mold steel?
Select a carbide micro end mill designed for the actual mold-steel grade and hardness, with suitable edge support, wear-resistant coating, controlled flute length, and minimum practical overhang. Cutter diameter and shape should match the mold feature.
Can the same micro end mill be used from HRC50 to HRC60?
Not automatically. The correct tool depends on the steel grade, measured hardness, machining stage, cutter diameter, feature depth, and required finish. Cutting conditions may also need to change as hardness and tool engagement increase.
Should I use a two-flute or four-flute micro end mill for mold steel?
Two flutes may provide more chip space, while four flutes may provide more cutting edges and stronger core support in suitable designs. The final choice should consider tool diameter, engagement, chip evacuation, and cutter geometry.
Why does a micro end mill chip when cutting HRC58 steel?
Possible causes include excessive runout, sudden corner engagement, an unsuitable tool edge or coating, excessive overhang, interrupted cutting, progressive wear, or cutting conditions that overload one flute.
Is a long-neck micro end mill suitable for deep mold ribs?
A long-neck tool may provide the required clearance, but the neck should be only as long and as thin as necessary. Excessive neck length or holder overhang increases deflection and breakage risk.
Should flute length equal the complete mold-cavity depth?
Not necessarily. Flute length should cover the axial section that must actively cut. Additional depth may require reduced-neck clearance rather than a longer cutting edge.
Why does a narrow mold slot become oversized?
Common causes include tool runout, deflection, cutting-edge wear, excessive holder overhang, and using the cutter at full slot width without a controlled finishing strategy.
How can micro-tool life be improved in HRC50–60 mold steel?
Use the largest practical cutter diameter, minimize flute length and overhang, control runout, rough with a larger tool, maintain stable engagement, clear chips effectively, and replace the cutter before wear becomes unstable.
When should a custom micro end mill be used?
A custom cutter may be useful when the mold requires a special diameter, short flute, specific long neck, unusual neck clearance, special radius, combined profile, or material-specific tool geometry unavailable in a standard catalog tool.
Choosing a micro end mill for HRC50–60 mold steel requires matching the complete tool structure to the actual material and mold feature. Hardness is important, but the steel grade, heat treatment, cutting stage, feature size, reach, tolerance, and surface requirement also affect the selection.
A stable process uses the largest practical cutter diameter, only the flute and neck length required by the feature, minimum holder overhang, controlled runout, suitable edge support, effective chip evacuation, and gradual cutting engagement.
The main cavity should be machined with a larger cutter wherever possible, leaving the micro end mill to finish small radii, narrow slots, mold ribs, recessed corners, and other restricted details.
