How to Choose an End Mill for Optical Transceiver Housing Machining

Reading volume: 56

Release time :2026-07-29

Estimated reading time:

Optical transceiver housings may contain narrow slots, compact cavities, connector openings, positioning shoulders, mounting surfaces, thin walls, and thermal contact areas. Although these features are small, they can place high demands on cutter rigidity, runout, chip evacuation, edge quality, and dimensional consistency.

No single end mill is suitable for every optical housing component. An aluminum cavity, a copper thermal part, a stainless-steel mounting feature, and a steel assembly fixture require different cutting-edge geometries, flute designs, coatings, and machining strategies.

The correct selection should begin with the workpiece material and actual feature. Cutter diameter, flute count, cutting length, neck reach, corner form, coating, tolerance, and required surface finish should then be matched to the operation.

Start with the Workpiece Material and Housing Feature

The term “optical transceiver housing” describes the application but does not provide enough information to select an end mill. Tool selection should be based on what the cutter will actually machine.

Before choosing the tool, confirm the material grade, slot width, cavity depth, wall thickness, internal radius, required reach, tolerance, and surface requirement. These factors determine whether the operation needs a standard square end mill, corner radius cutter, ball nose tool, micro-diameter cutter, reduced-neck tool, or custom geometry.

For an overview of the metal parts and precision features that may require milling, see our guide to end mills for optical transceiver housings and precision components.

Choose the End Mill According to the Housing Material

Optical transceiver housings and related precision components may be manufactured from aluminum alloys, copper alloys, stainless steel, or other metals. Steel may also be used for positioning fixtures, assembly tooling, inspection nests, and selected structural parts.

The cutter should follow the actual material rather than the optical-industry application alone.

End Mills for Aluminum Optical Housings

Aluminum is often selected for lightweight housings, bases, covers, and thermal-management components. Its cutting resistance may be relatively low, but an unsuitable cutter can cause material adhesion, built-up edge, poor chip evacuation, or burrs around thin edges.

An aluminum end mill should have a sharp cutting edge and enough flute space to move chips away from small slots and cavities. A smooth or polished flute can help limit material adhesion and keep the effective cutting edge cleaner.

Dohre AEX aluminum end mills are available for aluminum slotting, pocket machining, side milling, profiling, and surface-finishing operations.

End Mills for Copper Components

Copper and copper alloys may be used for selected heat-spreading parts, inserts, bases, and precision thermal components. These materials can form ductile burrs and may adhere to a worn or unsuitable cutting edge.

The cutter should shear the material cleanly, maintain a smooth flute surface, and prevent chips from being dragged across the finished component. Tool runout is particularly important because unequal flute loading can increase adhesion, burr formation, and surface marks.

Copper alloys differ in machinability, so the final geometry and surface treatment should be selected according to the actual material grade, feature, and finishing requirement.

End Mills for Stainless-Steel Features

Stainless steel may be used for selected mounting features, structural parts, connector components, clips, or production tooling. Compared with aluminum, it generates more cutting heat and places greater demands on edge strength and coating performance.

Repeated rubbing can create a work-hardened surface and make the next pass more difficult. The toolpath should maintain stable chip formation and avoid unnecessary dwell or light rubbing at cavity bottoms and corners.

Dohre TEX stainless steel end mills use stainless-steel-oriented geometry and vibration-control features for slotting, pocketing, side milling, and semi-finishing applications.

End Mills for Steel Fixtures and Tooling

Positioning nests, inspection fixtures, assembly bases, and steel tooling should be matched to their actual material and hardness. Pre-hardened mold steel within HRC60 requires a different cutter from heat-treated tooling at HRC60–68.

Dohre UEX mold steel end mills for materials up to HRC60 can be considered for suitable steel fixtures, pockets, sidewalls, and precision surfaces. Higher-hardness tooling should be matched to a high-hardness steel cutter according to its measured condition.

How to Select the End Mill Diameter

Cutter diameter affects feature access, internal radius, tool rigidity, chip space, and sensitivity to runout. The smallest possible diameter is not automatically the most accurate choice.

Use the largest cutter that can produce the required slot width and internal radius. A larger tool usually provides a stronger core and greater resistance to bending.

When a cavity contains a small internal radius only in selected corners, rough the main pocket with a larger cutter. Use a smaller end mill only to remove the remaining corner material. This reduces machining time and cutting load on the micro tool.

Detailed guidance on cutter diameter, small slots, and cavity machining is available in How to Machine Small Slots, Cavities, and Alignment Features in Optical Transceiver Housings.

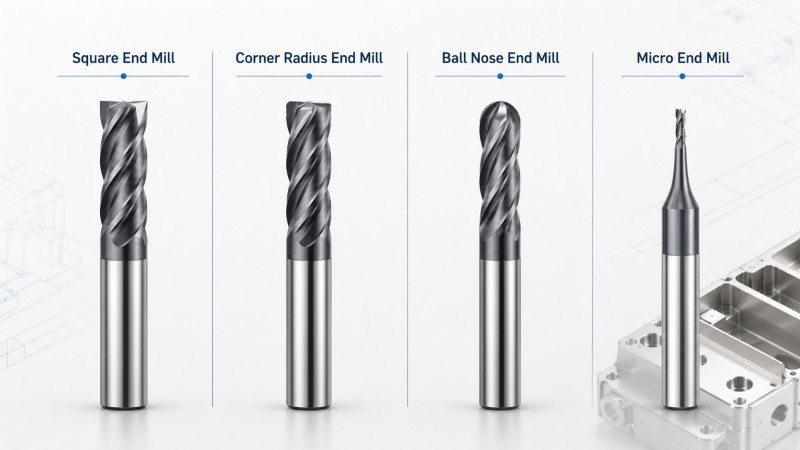

Choose the Cutter Shape According to the Feature

Square End Mills for Slots, Pockets, and Flat Bottoms

Square end mills are commonly used for narrow slots, flat-bottom cavities, shoulders, steps, sidewalls, and external profiles. They provide a defined bottom corner but place concentrated load on the sharp tool corner.

The corner should be monitored for wear or micro-chipping, especially during interrupted cutting or when the cutter enters a tight internal corner.

Corner Radius End Mills for Stronger Corner Support

A corner radius end mill distributes the cutting load over a curved corner. It can provide stronger corner support for cavity transitions, shoulders, sidewalls, and finishing operations where a completely sharp internal corner is not required.

The tool radius must still match the component drawing. A larger radius improves tool strength but also changes the internal workpiece corner.

Ball Nose End Mills for Curved and 3D Features

Ball nose end mills are used for contoured surfaces, curved fixture nests, rounded positioning features, and selected 3D profiles. They are not the first choice for flat-bottom housing slots or vertical cavity walls.

Surface finish depends on tool diameter, step-over, toolpath direction, runout, and contact position along the ball profile.

Micro and Reduced-Neck End Mills for Restricted Features

Micro-diameter end mills are used when standard cutters cannot enter narrow slots, compact cavities, small openings, or fine corner features. A reduced-neck design can provide clearance for deeper structures while keeping the actual cutting length shorter.

A solid carbide micro-diameter end mill can be selected for small slots, fine profiles, restricted cavities, and precision details. The flute geometry and coating should be matched to the workpiece material.

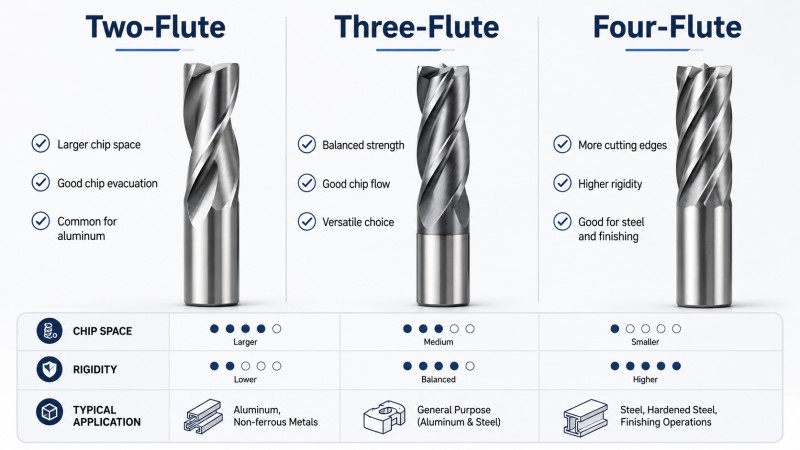

Two, Three, or Four Flutes: Which Is More Suitable?

Flute count affects chip space, cutter core, cutting-edge engagement, and surface consistency. There is no universal flute count for every optical housing operation.

Two-flute tools are often selected when chip space is the main priority. Three-flute tools can provide a useful balance for aluminum machining, while four-flute tools may suit materials and operations that require stronger core support or more cutting edges.

However, flute count should not be selected separately from tool diameter, material, slot engagement, spindle speed, chip evacuation, and cutter geometry. A four-flute tool designed for stainless steel is not automatically suitable for a deep aluminum slot.

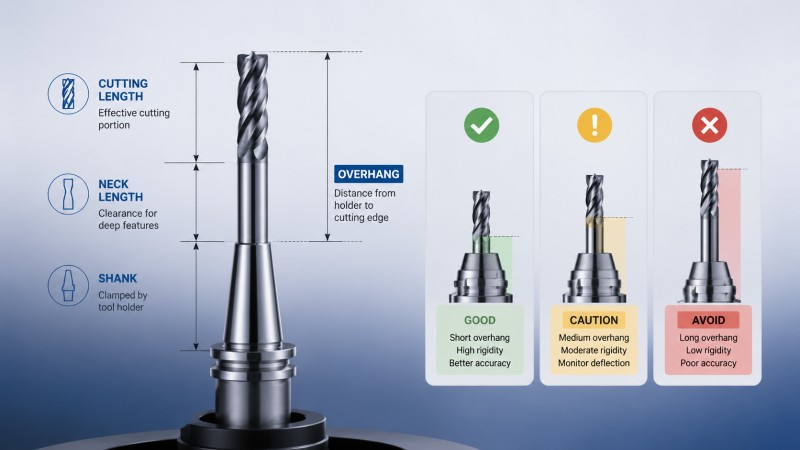

Match Cutting Length, Neck Length, and Overhang to the Feature

Cutting length, neck length, and tool overhang are different dimensions. Increasing all three to make the cutter “long enough” can reduce rigidity unnecessarily.

• • Cutting length should cover the material that the flute must actually machine.

• • Neck length provides clearance around deeper walls or restricted structures.

• • Tool overhang is the unsupported length extending from the holder and should remain as short as possible.

A long full-flute cutter may bend more than a tool with a short cutting edge and a properly designed reduced neck. For deep optical housing features, reduced-neck geometry can provide access without making the entire cutting section unnecessarily long.

How to Select the Coating or Tool Surface

Coating selection should follow the workpiece material, cutting temperature, edge-sharpness requirement, and machining operation. A coating that provides wear resistance in stainless steel may not be the best choice for an aluminum slot that requires a very sharp, low-friction edge.

Do not select a coating by color alone. The complete cutter—including substrate, edge preparation, geometry, flute finish, and coating—determines its machining performance.

Separate Roughing, Semi-Finishing, and Precision Finishing

One end mill may be able to complete several operations, but using the same cutter for every stage is not always the most stable approach. Roughing and finishing have different priorities.

A roughing cutter may continue removing material after edge wear begins, but it may no longer provide the edge quality required for a connector opening, alignment slot, or thermal contact surface.

Why Runout Is Critical in Optical Housing Machining

Runout causes the flutes to remove unequal amounts of material. One edge may carry most of the cutting load while another cuts less or rubs against the surface.

Possible results include:

• • Oversized slots or cavities.

• • Unequal wall finish.

• • Burrs concentrated on one feature edge.

• • Rapid wear on one flute.

• • Reduced micro-tool life.

• • Sudden cutter breakage.

Runout becomes more significant as the cutter diameter decreases. Before using a micro end mill, inspect the holder, collet, spindle interface, tool-clamping length, and cleanliness of all contact surfaces. Measure runout close to the cutting edge rather than only on the shank.

Chip Evacuation Must Match the Feature and Material

Small slots and cavities provide limited space for chips to leave the cutting zone. Trapped chips can be cut again, scratch the finished wall, increase heat, damage the cutting edge, or contribute to burr formation.

• • Use sufficient flute space for the workpiece material.

• • Avoid excessive axial engagement in narrow full-width slots.

• • Direct coolant or air toward the cutting zone.

• • Clear chips between progressive-depth passes.

• • Remove roughing chips before beginning the finishing pass.

• • Inspect the flute for built-up aluminum or copper adhesion.

Increasing spindle speed alone will not solve a restricted chip path. Flute count, flute geometry, cutting depth, chip load, and flushing direction should be evaluated together.

Select the End Mill According to the Critical Feature

When one component contains several different features, the most critical structure may determine the tool selection. For example, a cutter suitable for roughing the main cavity may not be suitable for finishing a narrow alignment slot.

When Is a Custom End Mill Needed?

Standard cutters can machine many optical transceiver housing features, but compact designs may require dimensions that are not available in a catalog tool.

A custom end mill may be useful when the component contains:

• • A non-standard slot or opening width.

• • A deep feature requiring a short cutting edge and extended reduced neck.

• • A special corner radius or cavity transition.

• • Restricted holder clearance.

• • A stepped or combined profile.

• • Several dimensions that could be machined with one combined tool.

• • A material requiring application-specific cutting geometry or coating.

Dohre provides custom and non-standard end mills according to the component drawing, material, slot width, cavity depth, neck clearance, corner requirement, tolerance, and machine conditions.

Practical End Mill Selection Workflow

1.Confirm the material. Identify the actual alloy, hardness, and supplied condition.

2.Identify the critical feature. Determine whether the main challenge is a narrow slot, deep cavity, thin wall, alignment surface, or thermal contact face.

3.Select the cutter shape. Choose square, corner radius, ball nose, micro-diameter, or reduced-neck geometry.

4.Choose the largest practical diameter. Do not use a smaller cutter than the geometry requires.

5.Match the flute count to the material and operation. Balance chip space, core support, and cutting-edge count.

6.Limit cutting length and overhang. Use only the reach needed to access the feature.

7.Select the edge and coating. Match sharpness, wear resistance, friction, and heat resistance to the material.

8.Check runout. Measure close to the cutting edge before machining small features.

9.Plan chip evacuation. Confirm that chips can leave the slot or cavity without being recut.

10.Separate roughing and finishing where necessary. Use a predictable edge condition for final critical dimensions.

Troubleshooting End Mill Selection Problems

FAQ

What is the best end mill for an aluminum optical transceiver housing?

An aluminum-oriented end mill with sharp cutting edges, sufficient chip space, smooth or polished flutes, and low cutting resistance is generally suitable. The diameter, flute count, cutting length, and coating should match the actual feature.

Should a two-flute or three-flute end mill be used for aluminum housings?

Two flutes often provide more chip space for full-slot machining, while three flutes may offer a useful balance between evacuation, core support, and cutting-edge count. The final choice depends on the operation and cutter design.

What end mill should be used for a narrow optical housing slot?

Use the largest square end mill that fits the required slot width and internal radius. Select only the cutting and neck length needed for the slot depth and surrounding clearance.

Why does a small-diameter end mill break during housing machining?

Common causes include excessive runout, long overhang, chip packing, deep full-width engagement, sudden entry, unsuitable cutting data, and using a cutter geometry that does not match the material.

Is an uncoated or DLC end mill better for aluminum?

Both may be suitable depending on the aluminum grade and operation. The selection should consider edge sharpness, friction, adhesion control, required tool life, surface finish, and whether the coating changes the effective edge condition.

When should a corner radius end mill be used?

A corner radius tool is useful for shoulders, cavity transitions, and sidewalls when the component permits an internal radius. Its stronger corner can provide more stable cutting than a completely sharp tool corner.

When should a custom end mill be considered?

A custom tool may be appropriate for special slot widths, deep restricted cavities, unusual corner radii, combined profiles, limited holder clearance, or applications where standard cutters require excessive reach or repeated tool changes.

Conclusion

Selecting an end mill for optical transceiver housing machining requires more than choosing a small cutter. The tool must match the workpiece material, feature geometry, slot width, cavity depth, wall thickness, tolerance, and surface requirement.

A stable selection process uses the largest practical cutter diameter, the shortest suitable cutting and neck length, a flute count matched to chip evacuation and tool strength, low runout, and material-specific edge geometry. Roughing, semi-finishing, and precision finishing should also be separated when critical dimensions or edge quality require a predictable cutting condition.

Dohre provides carbide end mills, aluminum and stainless-steel cutters, micro-diameter tools, and custom solutions for optical transceiver housings, narrow slots, compact cavities, thin walls, and precision mounting features. Contact us with your material, drawing, feature dimensions, tolerance, and machining conditions for tool recommendations.
